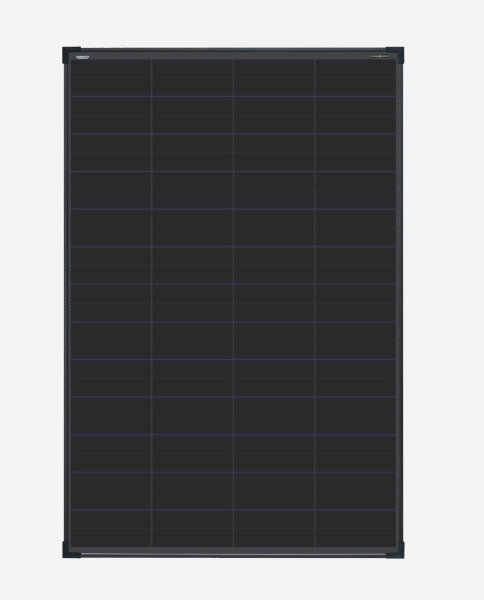

enjoy solar® Monocrystalline Solar Panel – HPBC Technology, 200W 24V

enjoy solar® Monocrystalline Solar Panel – HPBC Technology, 200W 24V

SKU: 00-1182200
Category: HPBC Serie 12V/24V
Manufacturers: enjoy solar

Max. Power (Pmax): 200 Wp
Max. Voltage (Vmp): 31.86 V
Max. Current (Imp): 6.28 A
Open-Circuit Voltage (Voc): 37.59 V
Short-Circuit Current (Isc): 6.77 A
Cells: Mono 52 (4 x 13)
Module Dimensions: 1180 x 770 x 30 mm
Module Weight: 9.89 kg

80,63 €

incl. 0% VAT , plus

Available immediately

Power Beyond Limits – Go Further with HPBC Solar Technology

Unleash maximum power, precision, and performance.

HPBC (Hybrid Passivated Back Contact) solar panels aren’t just a step forward—they are a giant leap into the future of solar energy.

Unlike conventional panels, HPBC uses advanced back-contact architecture to remove surface obstructions, capture more sunlight, and convert it into higher energy yields. This means more power per square meter, sleeker aesthetics, and superior results in all conditions—from overcast days to scorching summers.

Whether you’re designing a high-end rooftop, optimizing a commercial site, or building a smart energy system, HPBC puts you in command of next-level solar Performance.

Technology Comparison:

Features	Conventional (PERC)	HPBC
Front Metal Contacts	Yes (visible grid lines)	No (all-back contact)
Efficiency	~20–21%	24 – 25 %
Aesthetics	Moderate (silver grid)	High (full black surface)
Temperature Performance	Standard	Improved
Manufacturing Complexity	Moderate	Higher but scalable
Low-Light Efficiency	Standard	Enhanced

Special Features:

Up to 25% conversion efficiency – significantly higher than standard panels
No front metal lines – 100% active surface for maximum sunlight absorption
Superior black-on-black aesthetics – seamless, modern appearance
Back-contact design – cleaner energy output and better heat dissipation
Outstanding low-light performance – efficient even on cloudy days
Improved temperature coefficient – higher output in extreme heat
Long-term reliability and durability – built for the toughest environments
3 Integrated Bypass Diodes – Minimizes power loss from partial shading.
Tempered ESG Solar Glass – with weather-resistant coating.
Reinforced Aluminum Frame – Rigid, corrosion-resistant support structure.
Waterproof according to IP67 – designed to withstand wind loads up to 2,400 Pa and snow loads up to 5,400 Pa.
Plug & Play Cabling – 90 cm 4.0 mm² solar cable with MC4 connectors.
TÜV Certified – Compliant with IEC 61215 & IEC 61730 safety standards.
Performance Guarantee – +3% tolerance, 90% output for 10 years, 80% for 25 years.

Technical Specifications

Item number	1182200
EAN Code	4260558578376
Max. power(Pmax)	200Wp
Max. voltage(Vmp)	31.86V
Max. current (Imp)	6.28A
Open circuit voltage (Voc)	37.59V
Short circuit current (Isc)	6.77A
Temperature coefficient of Voc	-0.270%/°C
Temperature coefficient of Isc	+0.048%/°C
Temperature coefficient of power	0.350%/°C
Normal operating cell temperature	45 ± 2°C
Operating temperature	-40 ~ +85°C
Max. System voltage	1000V DC
Power tolerance	0 ~ +3%
Junction Box	IP67
Bypass Diodes	3 pcs
Solar Cells	Mono 52 (4x13)
Connection cable and connector	4mm² x 90cm, Solar Stecker (+/-)
Performance Warranty	25 years
Module dimension	1180 x 770 x 30 mm
Module weight	9.89 kg
