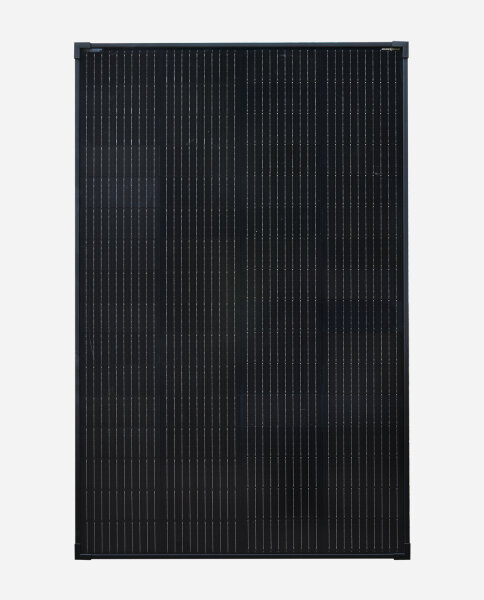

enjoy solar® Monokristallines Solar Modul 170W/12V black (altes Model)

enjoy solar® Monokristallines Solar Modul 170W/12V black (altes Model)

SKU: 110B170AM
Category: Black Series Monocrystalline 12V
Manufacturers: enjoy solar

Abmessung 1480*670*35mm 2 Diodo 4mm² kabel 158.75 mm 9BB Perc Zell Wirkungsgrad 21.5

58.78 € 0% MwSt. - § 12 Abs. 3 UStG

69,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Available immediately

enjoysolar® Monokristallin 170 Watt 12V Schwarz Solarmodul Solarpanel Mono 170W ideal für Garten, Wohnmobil und diverse autarke Systeme

Besondere Merkmale

Absolutes Highlight: Hochwertige 5-Buschbare Solar Zellen von Trina Solar
90cm lang 4mm² Solarkabel mit MC4 Stecker angeschlossen
Zwei integrierte Bypass Diode - minimierter Leistungsabfall bei Beschattung
TÜV zertifiziert
Oberfläche aus gehärtetem ESG-Solarglas mit wetterfester Beschichtung
Einzigartiges Rahmen in eloxierten Aluminium
Leistungsgarantie bis 10 Jahren mit 90% und bis 25 Jahren mit 80%

Technische Daten

Herstellermodell

Eco Line ES170M36

EAN Code

4260558571278

Artikelnummer

110B170

Max. Leistung (Pm)

170W*

Max. Spannung (Vmp)

18,5V

Max. Strom (Imp)

9,20A

Leerlaufspannung (Voc)

22,8V

Kurzschlußstrom (Isc)

9,94A

Betriebstemperatur

-45°C ~ +85°C

Zellen

36*Mono-Kristallin

Max. Netzspannung

1000VDC

Toleranz

+3%

Gewicht

13,5kg

Abmessung

1460*664*35mm

*Werte entsprechend STC-Bedingungen (E=1000W/m², Tc=25°C, AM=1,5)

Enjoysolar® Monocrystalline 170 Watt 12V Black Solar Panel Mono 170W ideal for Garden, Camping, camper van and Offgrid systems

Special features

· High-quality 5-Buschable solar cells from Trina Solar

· 90cm long 4mm² solar cable with MC4 connector

· Two integrated bypass diode - minimized power loss during shading

· TÜV certified

· Surface made of tempered toughened solar glass with weatherproof coating

· Unique extra robust frame in anodized aluminum

· Performance guarantee up to 10 years with 90% and up to 25 years with 80%

Technical specifications

Model of manufacturer

Eco Line ES170M36

EAN Code

4260558571278

Article No.

110B170

Max. power (Pm)

170W*

Max. voltage (Vmp)

18.5V

Max. current (Imp)

9.20A

Open circuit voltage (Voc)

22.8V

Short circuit current (Isc)

9.94A

Operating temperatur

-45°C ~ +85°C

Cell

36*Mono-Kristallin

Max. mains voltage

1000VDC

Tolerance

+3%

Weight

13.5kg

Dimension

1460*664*35mm

* Values according to STC conditions (E = 1000W / m², Tc = 25 ° C, AM = 1.5)

· Herstellermodell: Eco Line ES170M36

· EAN Code: 4260558571278

· Artikelnummer: 110B170

· Max. Leistung (Pm): 170W*

· Max. Spannung (Vmp): 18.5V

· Max. Strom (Imp): 9.20A

· Leerlaufspannung (Voc): 22.8V

· Kurzschlußstrom (Isc): 9.94A

· Betriebstemperatur: -45°C ~ +85°C

· Zellen: 36*Mono-Kristallin

· Max. Netzspannung: 1000VDC

· Toleranz: +3%

· Gewicht: 13.5kg

· Abmessung: 1460*664*35mm

*Werte entsprechend STC-Bedingungen (E=1000W/m², Tc=25°C, AM=1,5)

How many bypass diode are installed in solar panel?

Solar panel 10W-80W has one bypass diode; solar panel 100W-320W has two bypass diodes. Exception: 1100100 (100W) has only one diode and 1160105 (XL 100W) has two diodes.

What is the function of the bypass diode?

The bypass diodes’ function is to eliminate the hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform.

How does shading affect the performance of solar panel?

When solar panels are exposed to shady conditions, their efficiency drops, and their performance suffers as a result. Environmental obstructions such as trees or nearby buildings, clouds, self-shading between panels in parallel rows, dirt, dust, and various other trash such as bird droppings, all cause shading. These shading effects may be static as a result of the obstruction’s location, or dynamic in certain situations, such as a shadow cast by moving clouds. Therefore, eliminating solar shading problems is the most effective way to avoid them.

How can I check the power of my panel?

Measure the open circuit voltage and short circuit current of your solar panel with multimeter and compare the result with the technical data of the panel. Please also note that the calculated values from technical data are ideal values and depend on various factors such as temperature, angle, compass direction, irradiance, air mass, humidity, solar radiation (impairment e.g., by high fog), resistances in cables, connectors, and charge controllers, etc.

Can different solar panels be connected?

Solar panels with the same (or slightly deviated value +/- 1V) voltage (V) but different power (W) can be connected in parallel without any problem. Solar panels of different voltage and power must not be connected in parallel, because the solar panel with the lowest voltage determines the voltage output of the whole array. When connecting solar panels together in parallel it is important that they ALL have the same nominal voltage value, but it is not necessary that they have the same ampere value. Solar panels with the same (or slightly deviated value +/- 1A) current (A) but different power (W) can be connected in series without any problem. Solar panels of different current and power should not be connected in series, because the solar panel with the lowest current determines the current output of the whole array. In fact, we do not recommend a parallel/series connection of the different solar modules, as a loss of power cannot be avoided in any case.
