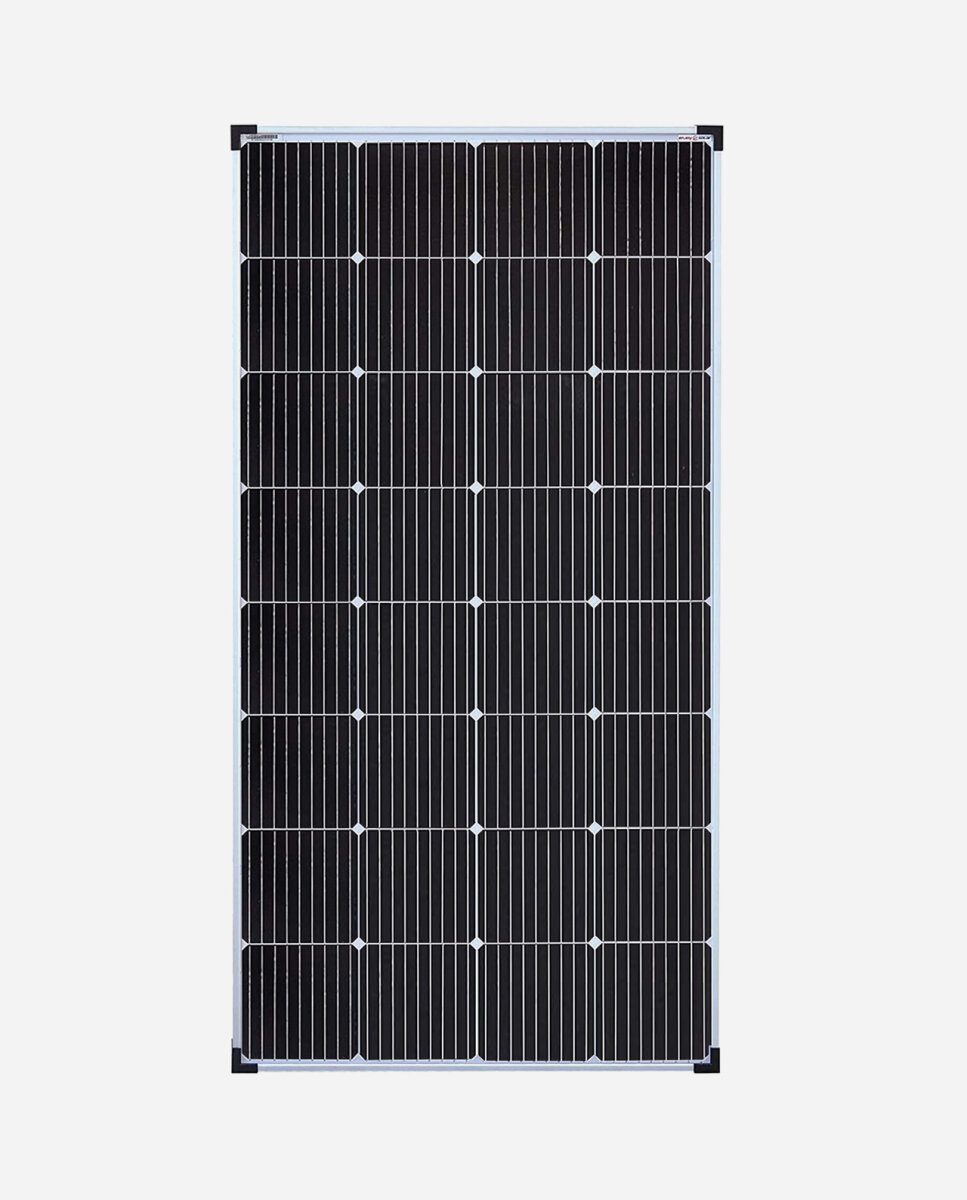

enjoy solar®PERC Monocrystalline Solar panel, 166mm*166mm, 9Busbars, 190W 12V

enjoy solar®PERC Monocrystalline Solar panel, 166mm*166mm, 9Busbars, 190W 12V

SKU: 1160190
GTIN: 4260558573197
Category: Classic Monocrystalline 12V
Manufacturers: enjoysolar

PV power 190W, perfect for 12V system
Ideal for RVs, boats, yachts, small areas, etc
Better performance of the larger Perc solar cells with 166mm * 166mm
Shorter “transport routes” for electricity with 9 bus bars
Low risk of micro-cracks

96.95 € 0% MwSt. - § 12 Abs. 3 UStG

115,37 €

incl. 19% VAT , plus

Old price: 163,95 €

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

All efforts are made to increase the power of PV-system. EXLUSIVELY SOLD BY SOLARV!The new enjoy solar® PERC (Passivated Emitter and Rear Cell) monocrystalline solar module with 9 busbars (9BB) increases the cell size from 158.75mm * 158.75mm to 166mm * 166mm, thereby increasing the cell efficiency considerably up to 22.9%. Because of the improvement in the power efficiency, the installation area and the costs are reduced. The 9BB has shorter and narrower grid fingers that result in a higher fill factor and higher current. In addition, the service life of the solar panel is extended by PERC and Anti-LeTID technology.

Special features

Construction with 166mm * 166mm monocrystalline PERC cells
With 9 multi-busbars, less resistance and more stability
Increased cell efficiency up to 22.9%
Less gaps between the solar cells and thinner busbar design
More solid energy generation with the added copper and excellent performance in case of the low light
Reduced installation area and costs
2 pcs integrated bypass diode
Surface made of hardened ESG solar glass with weatherproof coating

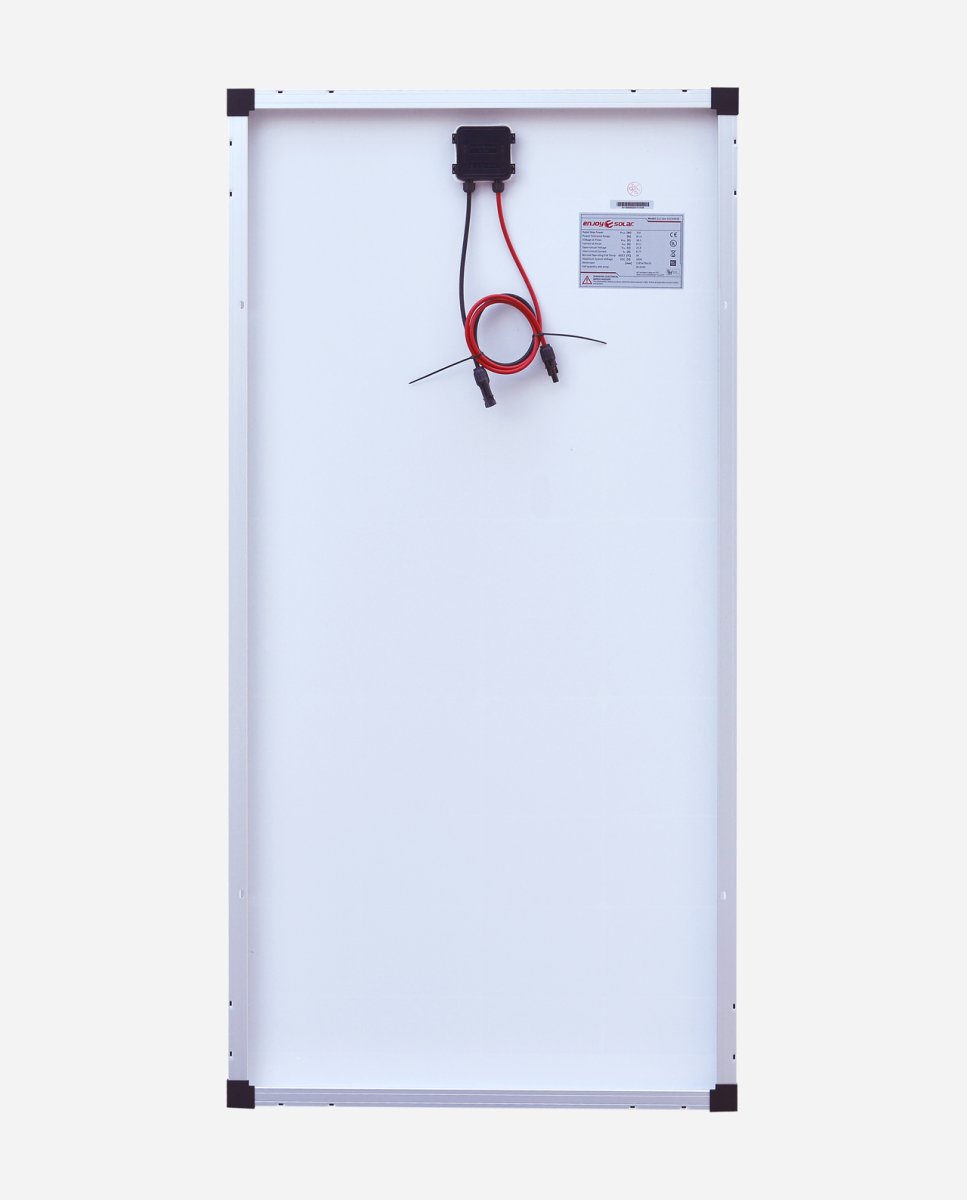

Unique, extra robust frame made of anodized aluminum
90 cm long solar cable; 2.5 mm² connected with MC-4 connectors
TÜV certified according to standards IEC61215, IEC61730
Plus tolerance guarantee (+ 3%), performance guarantee up to 10 years with 90% and up to 25 years with 80%

Electrical characteristics

Product code	Eco Line ES190M36
Item number	1160190
EAN Code	4260558573388
Cells	Perc Monocrystalline
Max. power(Pmax)	190W
Max. voltage (Vmp)	18.5V
Max. current (Imp)	10.28A
Open circuit voltage (Voc)	22.8V
Short circuit current (Isc)	11.10A
Temperature coefficient of Voc	-0.36%/K
Temperature coefficient of Isc	0.05%/K
Temperature coefficient of power	-0.44%/K
Normal operating cell temperature	44+/-2℃
Operating temperature	-40 ~ +85℃
Max. System voltage	1000VDC
Power tolerance	0 ~ +3%
Junction Box	Waterproof IP65,1000VDC
Bypass Diodes	2 pcs

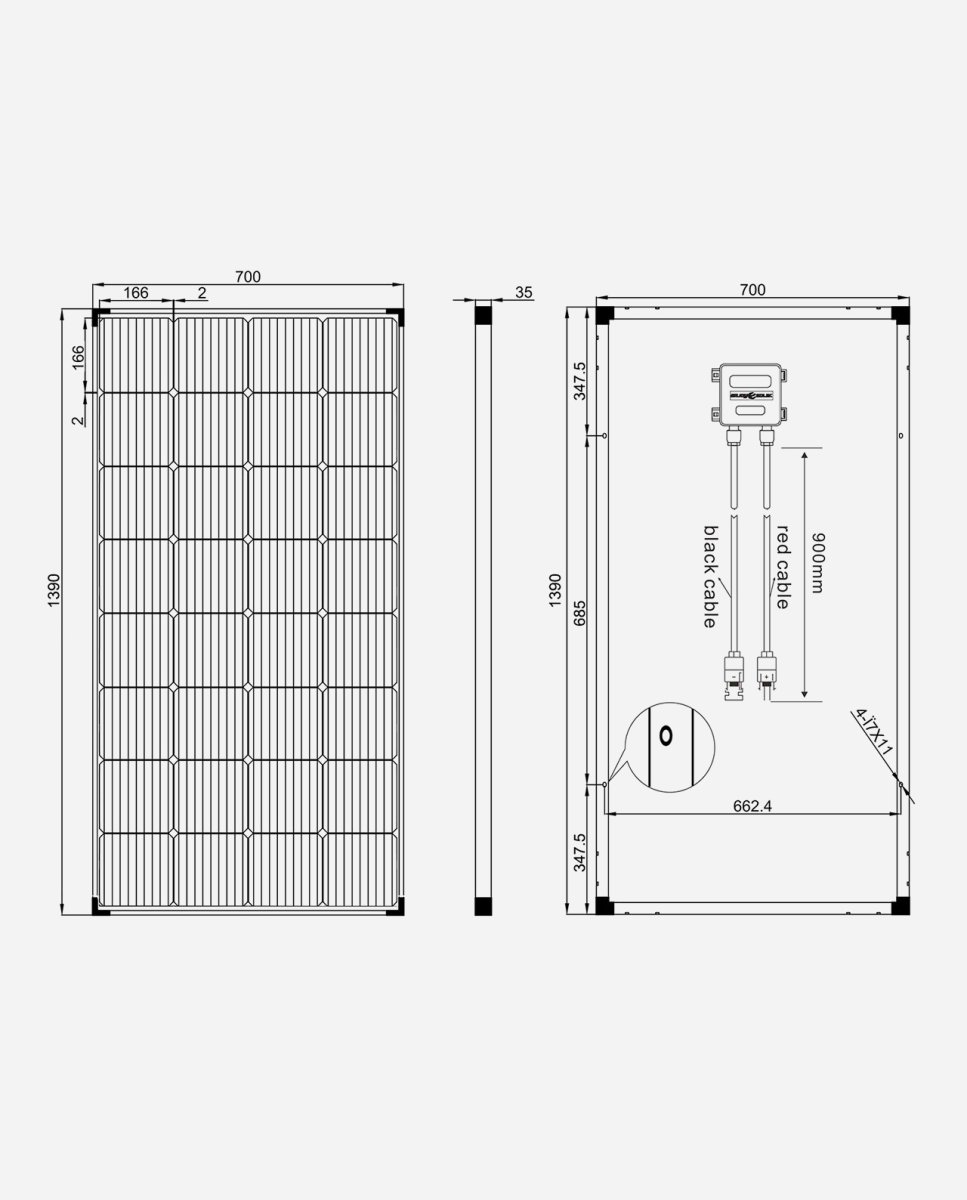

Module dimension	1390 * 700* 35 mm
Module weight	12 kg

Measured at standard test conditions: irradiance 1000 W/m², air mass 1.5 spectum, temperature 25℃, Electrical parameters vary by -5% to +5%

How many bypass diode are installed in solar panel?

Solar panel 10W-80W has one bypass diode; solar panel 100W-320W has two bypass diodes. Exception: 1100100 (100W) has only one diode and 1160105 (XL 100W) has two diodes.

What is the function of the bypass diode?

The bypass diodes’ function is to eliminate the hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform.

How does shading affect the performance of solar panel?

When solar panels are exposed to shady conditions, their efficiency drops, and their performance suffers as a result. Environmental obstructions such as trees or nearby buildings, clouds, self-shading between panels in parallel rows, dirt, dust, and various other trash such as bird droppings, all cause shading. These shading effects may be static as a result of the obstruction’s location, or dynamic in certain situations, such as a shadow cast by moving clouds. Therefore, eliminating solar shading problems is the most effective way to avoid them.

How can I check the power of my panel?

Measure the open circuit voltage and short circuit current of your solar panel with multimeter and compare the result with the technical data of the panel. Please also note that the calculated values from technical data are ideal values and depend on various factors such as temperature, angle, compass direction, irradiance, air mass, humidity, solar radiation (impairment e.g., by high fog), resistances in cables, connectors, and charge controllers, etc.

Can different solar panels be connected?

Solar panels with the same (or slightly deviated value +/- 1V) voltage (V) but different power (W) can be connected in parallel without any problem. Solar panels of different voltage and power must not be connected in parallel, because the solar panel with the lowest voltage determines the voltage output of the whole array. When connecting solar panels together in parallel it is important that they ALL have the same nominal voltage value, but it is not necessary that they have the same ampere value. Solar panels with the same (or slightly deviated value +/- 1A) current (A) but different power (W) can be connected in series without any problem. Solar panels of different current and power should not be connected in series, because the solar panel with the lowest current determines the current output of the whole array. In fact, we do not recommend a parallel/series connection of the different solar modules, as a loss of power cannot be avoided in any case.
