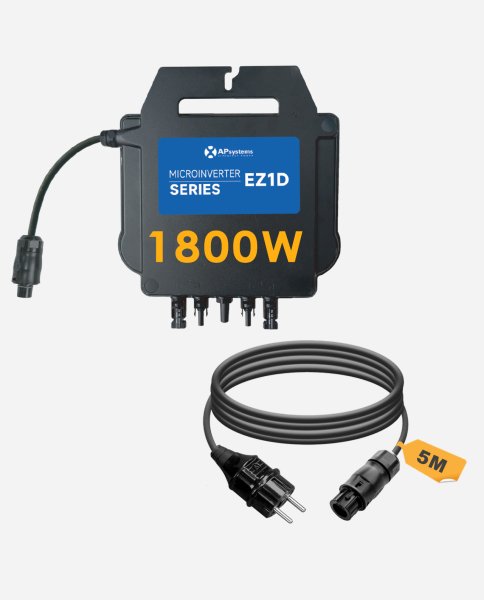

APsystems® Microinverter EZ1D 1800W incl. integrated WIFI & Bluetooth for Balcony Power Plant
State of the Art
The EZ1D series is the Wi-Fi version of APsystems' 3rd generation dual microinverters, specifically designed for DIY applications. The EZ1D series features 2 input channels with independent MPPTs, allowing for high input current and output power to accommodate today's high-power modules.
Users can connect directly to EZ1D series microinverters via Bluetooth on their mobile phones to access real-time data from their solar system. In addition to direct connection, the EZ1D series can also connect to a router via Wi-Fi, enabling data transmission to cloud servers for remote monitoring.
Maximizing PV Energy Generation
Each PV input features individual MPPT control (Maximum Peak Power Tracking), ensuring maximum power is fed into the grid regardless of the performance of other PV modules in the system. When PV modules are impaired by shade, dust, different orientations, or other conditions that lead to reduced performance of a module compared to other units, the APsystems microinverter optimizes system efficiency by maximizing the power output per input channel.
Fully Connected
Users can directly connect to the EZ1D microinverter with their smartphones via Bluetooth and access real-time data from their solar system. In addition to direct connection, the EZ1D series can also connect to a router via Wi-Fi and send data to cloud servers for remote monitoring. The smartphone application allows for live monitoring of current solar production and daily production trends, among other features.
Integrated NA Protection
As a key component of the photovoltaic system, the inverter plays a crucial role in controlling the current and voltage, ensuring the safety of both the system and the users. Network and system protection serves to safely disconnect the inverter in case of grid failures or when disconnecting the inverter from the power grid.
The APsystems EZ1D is equipped with the necessary relay for network and system protection (NA-Schutz) and thus complies with all legal requirements!
Robust Construction
The EZ1D microinverter is housed in a sturdy enclosure, providing excellent protection against external influences. The IP67 certification guarantees complete dust protection and resistance to temporary submersion. Therefore, the EZ1D is well-suited for balcony installations, even in adverse weather conditions.
Special features:
- Specially designed for balcony and DIY systems: Plug-and-play installation
- Maximum continuous output power: 1800W
- Supports at least four PV modules with an input power of 315-660Wp
- Expansion possibility of up to 8 PV modules
- Suitable for PV modules with high input currents
- Two PV-Input channels with independent MPPTs
- Maximum reliability - IP67 protection class (dust and waterproof)
- Integrated Wi-Fi (2.4GHz) and Bluetooth module
- Integrated VDE relay
- AC connector: Betteri® AC connector
- DC connector: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
- 12-year warranty
Technical Specifications
| Model |
EZ1D-EMEA |
| Input Data (DC) |
|
| Recommended Input Power (STC) |
315Wp-660Wp+ |
| Peak Power Tracking Voltage |
56V-90V |
| MPPT Voltage Range |
52V-118V |
| Maximum Input DC Voltage |
118V |
| Maximum Input Current |
20A x 2 |
| Maximum Short Circuit Current |
25A x 2 |
| Output Data (AC) |
|
| Maximum Continuous Output Power |
1800VA |
| Nominal Output Voltage/Range |
230V/184V-253V |
| Nominal Output Current |
7.8A |
| Nominal Output Frequency/ Range |
50Hz/47.5Hz-51.5Hz |
| Default Power Factor |
0.99/0.9 leading...0.9 lagging |
| Efficiency |
|
| Peak Efficiency |
96.7% |
| Nominal MPPT Efficiency |
99.5% |
| Night Power Consumption |
20mW |
| Mechanical data |
|
| Operating Ambient Temperature Range |
-40°C to +65°C |
| Storage Temperature Range |
-40°C to +65°C |
| Dimension (mm) |
283mm x 233mm x 39.5mm |
| Weight (kg) |
4.2 |
| DC Connector Type |
Stäubli MC4 PV-ADBP4-S2&ADSP4-S2 |
| Cooling System |
Natural Convection - No Fans |
| Enclosure Environmental Rating |
IP67 |
| Featurese |
|
| Communication |
Integrated Wi-Fi (2.4GHz) and Bluetooth |
| Maximal Units Connected |
2 |
| Isolation Design |
High Frequency Transformers, Galvanically Isolated |
| Energy Management |
AP EasyPower APP*
|
| Compliance |
EN 62109-1/-2; EN IEC 61000-6-1/-2/-3/-4; VDE-AR-N 4105 |
| Warranty |
12 Years Standard |
*The EasyPower App only supports monitoring of 1 unit of product from the EZ1D series.
enjoy solar® Connecting Cable for Micro Inverter with Betteri® BC01 Connector to Schuko
The connecting cable from enjoy solar® connects your micro inverter to a standard earthed socket (Schuko). The cable is equipped with the Betteri® BC01 connector on the inverter side and a Schuko plug type F on the socket side. This connecting cable is ready for use to connect the micro inverter to your power grid.
Special features:
- 3 x 1.5mm² insulated PVC cable H05VV-F connecting cable
- Connector on the inverter side: Betteri® BC01
- Connector on the socket side: Schuko plug type F
- Rated voltage: 300/500V CE
- Operating temperature: 70°C
- Rated current (BC01): 20A
- TÜV tested according to PPP 59015A:2013
