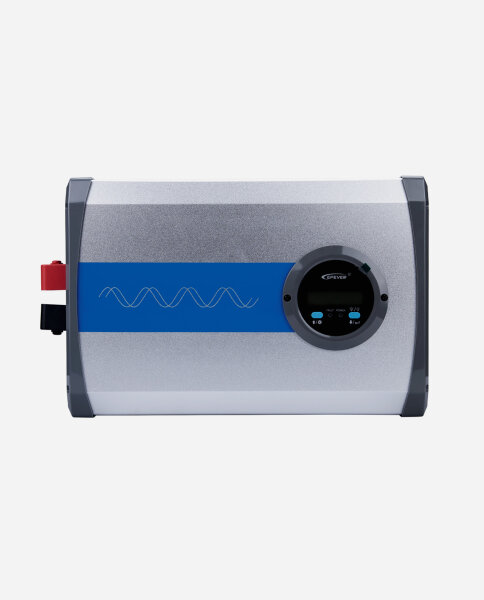

EPEVER® IP-PLUS Serie LCD Display Pure Sine Wave Inverter, 12VDC to 230VAC | 1500W

EPEVER® IP-PLUS Serie LCD Display Pure Sine Wave Inverter, 12VDC to 230VAC | 1500W

SKU: 3191500
GTIN: 4260558572930
Category: IP-PLUS Series
Manufacturers: EPEVER

180 ° rotatable LCD display
Smartphone apps, PC software remote control
Output power factor up to 1
Input surge current suppression for lithium battery (LiFePo4) system
The metal enclosure of the inverter must be grounded

Online reading and download:User manual – IP PLUS Inverter

Dauerausgangsleistung

199.96 € 0% MwSt. - § 12 Abs. 3 UStG

237,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Available immediately

EPEVER® IPower Plus is the new generation of pure sine wave inverter which is compatible with the lithium battery system. This new inverter with the input surge current suppression technology, which effectively prevents the damage of surge current to lithium battery cell and BMS (Battery Management System). Also, the smart voltage and current double closed-loop control algorism bring the inverter a faster response and better resistance to load impact. The optional communication solution allows people to monitor the operational status in real-time or change the parameters at any place.The equipment fits multiple areas where need DC to AC, such as solar AC power system, vehicle system, caravan, off-grid system etc.

Features

Input to output electrical isolation
Smart voltage and current double closed-loop control bring a faster response and better reliability.
Input surge current suppression technology to support the lithium battery system
Output power factor up to 1
Low loss of no-load and standby
Extensive protection:Input reverse polarity; Input overvoltage;Input low voltage;Output overload and short circuit;Overheating
Extra external switch port
Smartphone and PC remote control through RS485 port
IEC62109, EN61000, RoHS approved

Technical specification

Modell	IP1500-12-PLUS	IP2000-12-PLUS	IP3000-12-PLUS
Item number	3191500	3192000	3193000
EAN Code	4260558572930	4260558572947	4260558572961
Rated input voltage	12VDC	12VDC	12VDC
Input voltage range	10.8～16VDC	10.8～16VDC	10.8～16VDC
Output continuous power	1500W	2000W	3000W
Surge power	3000W (5s)	4000W (5s)	6000W (5s)
Output voltage	220VAC(±3%)；230VAC(-7%~+3%)	220VAC(±3%)；230VAC(-7%~+3%)	220VAC(±3%)；230VAC(-7%~+3%)
Output frequency	50/60Hz±0.2%	50/60Hz±0.2%	50/60Hz±0.2%
Load power factor	0.2~1(VA≤ Continuous output power)	0.2~1(VA≤ Continuous output power)	0.2~1(VA≤ Continuous output power)
Rated output power efficiency①	＞89%	＞88%	＞87%
Max. efficiency②	＞93% (30% Load)	＞94% (30% Load)	＞94% (30% Load)
Self-consumption	＜0.2A	＜0.2A	＜0.2A
No-load current	＜1.2A	＜1.2A	＜1.6A
USB Output	5VDC/Max.1A	5VDC/Max.1A	5VDC/Max.1A
RS485 com. port	5VDC/200mA	5VDC/200mA	5VDC/200mA
Working temperature	20℃~+60℃	20℃~+60℃	20℃~+60℃
Enclosure	IP20	IP20	IP20
Overall dimension	387×231.5×123mm	420 × 231.5 × 123mm	557 x 231.5 x 123mm
Mounting dimension	361×145mm	395×145mm	532x145mm
Net Weight	6kg	8kg	10.5kg

①Load power is continuous output power when the DC input is the rated voltage (25℃)②This efficiency is referred to the max. power when connected with different load under the rated DC input voltage.
