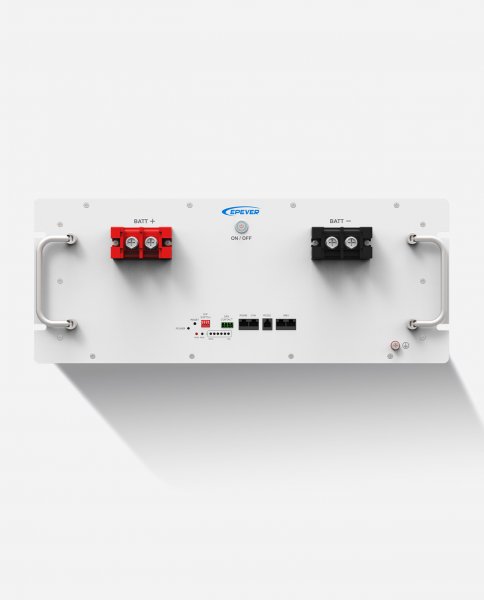

EPEVER® Lithium Battery LiFePO4 Batteries 51.2V 205Ah – integrated BMS, A-Grade LiFePO4-Cells, Rack-mountable

EPEVER® Lithium Battery LiFePO4 Batteries 51.2V 205Ah – integrated BMS, A-Grade LiFePO4-Cells, Rack-mountable

SKU: 4951105-EPEVER
GTIN: 4260558576334
Category: Lithium-ion battery
Manufacturers: EPEVER

A-Grade LiFePO4 cells
Integrated BMS
Seamless Communication
Over 3000 cycles at 80% DOD
Up to 8 units can be connected in parallel
Maximum discharge current: 200A for 30 minutes
Nominal voltage: 51.2V
Battery terminal clamp: M6

Nominal voltage

1648.70 € 0% MwSt. - § 12 Abs. 3 UStG

1.961,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Available immediately

This 51.2V 205Ah lithium battery, certified to EU standards, features a durable ABS case and delivers a continuous discharge current of 100A. It offers over 3000 charge cycles, ensuring an exceptionally long-lasting performance. With an IP20 protection rating, this system is ideally suited for use in solar panel battery banks, home battery storage, and other residential solar applications. It also provides reliable power for RVs, camping equipment, marine applications, and backup power systems.

Seamless communication via RS485, CAN, and RS232 interfaces allows for flexible and scalable system integration. These interfaces ensure stable data transmission and make it easy to expand the system to include up to 8 batteries in a parallel connection. Important certifications such as UN38.3 and emphasize the safety and reliability of this model.

The LFP10.5KWH51.2V-P20R1GF30 battery model is an excellent choice for energy storage solutions in industrial, commercial, and residential applications. It is designed to meet the demands of modern energy systems, combining high efficiency, long lifespan, and dependable performance.

Special Features

A-Grade LiFePO4 cells with cell balancing function
Integrated BMS (Battery Management System) with extensive protection features
Seamless communication via RS485, CAN, and RS232 interfaces
Over 3000 cycles at 80% DOD under standard conditions (25 °C, 0.5 C)
Up to three times more charge cycles compared to conventional lead-acid batteries
Robust case with excellent heat dissipation and enhanced safety
Up to 8 units can be connected in parallel
Maximum discharge current: 200A for 30 minutes
Nominal voltage: 51.2V
Battery terminal clamp: M6
IP protection class: IP20
Certifications: UN38.3, MSDS
Warranty up to 10 years

Technical Specifications

Manufacturer model	LFP10.5KWH51.2V-P20R1GF30
EAN Code	4260558576334
Article Number	4951105-EPEVER
Rated Voltage	51.2V
Rated Capacity(AH)	205Ah
Rated Energy(WH)	10496Wh
Pack Mode	16S1P
Continuous Discharge Current(A)	100A
Charge Cut-off Voltage(V)	57.6V
Discharge Cut-off Voltage(V)	41.6V
Max.Charge Current(A)	150A
Max.Discharge Current(A)	200A
Peak Discharge Current(A)	220A@5S
Recommend Discharge Current(A)	100A
Recommend Discharge Deapth(%)	80%
Cycle Life	≥3000 cycles (25 °C, 0.5 °C) 80 % DOD
Communication	RS485 CAN RS232
Display	LED
Operating Temperature	Discharge: -20°C ~ +60°C, Charge: 0°C ~ +55°C
Storage Temperature(℃)	5℃ ~ +35℃
Recommend Storage Humidity	60% ± 20% RH
Battery terminal clamp	M6
Dimensions(LBH)	586 * 550 * 232mm
Weight(kg)	90.1 ± 0.5
Certificate	UN38.3. MSDS
Protection Class	IP20
