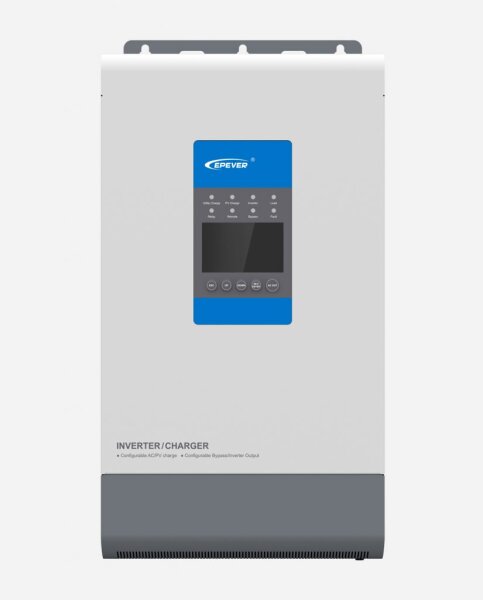

EPEVER® UPOWER Hybrid-Inverter Serie 48VDC into 230AC

SKU: 00-62413000
GTIN: 4260558572534
Manufacturers: EPEVER

New type of all-digital intelligent energy storage and management Inverter/charger
Advanced all-digital control technology for AC-DC charging modules
MPPT technology, Max. tracking efficiency 99.5 %, Max. DC-DC conversion efficiency 98.5 %
SPWM technology, with high efficiency up to 95 %
With the function of Utility & Solar charging ratio selection, and total charging current setting
Battery Type: AGM, GEL, FLD, USER (do not support Lithium battery)
Four charging mode and two output mode
RS485 isolated communication interface with standard Modbus protocol

Read and download online:User Manual – UPower Series hybrid inverter

493,24 €

incl. 0% VAT , plus

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

pcs

UPower inverter /charger combines with solar & utility charging and AC output in one unit, which adopts a multi-core processor design and advanced MPPT control algorithm to realize intelligent management. The device is usally used in remote area where is lack of reliable utility but rich of sunlight. It can be the supplement for the daily electricity consumption, which is also to save energy and your money.

Special Features

Advanced MPPT technology to achieve multiple wave crest maximum power point tracking and high tracking & conversion efficiency, Max. tracking efficiency 99.5 %, Max. DC-DC conversion efficiency 98.5 %
The advanced all-digital control is adopted for AC-DC charging modules that realized wide voltage input
Adoption of the advanced SPWM technology, true pure sine wave output, with high efficiency up to 95 %① and full load efficiency of 93 % max①
High output voltage stability: when full load working in the working voltage range of battery, output voltage 220V/230V±5%②, frequency 50/60±0.1 Hz; voltage& frequency optional
Four charging mode: Utility priority, Solar priority, Utility & Solar and Solar only
Two output mode: Battery and Utility
Support cold start and soft start
RS485 isolated communication interface with 5V 200mA output, it is easy to access communication devices such as Wifi module
PC or mobile phone APP can be used for remote monitoring,
Optional back light and buzzer warning selection via PC software
With PV reverse polarity, Charging power limit, short circuit, battery reverse polarity protections
With Utility input/AC output over voltage, battery low voltage, power limit, over current and short circuit protections
With battery low/over voltage protection and temperature compensation etc
With internal over-temperature protection, and intelligent start-stop function of the fan
Variety of accessories can be selected according to user’s requirements

①UP1500 and above models: testing result under 25℃ environment temperature, rated input voltage, and resistive load②In battery discharging mode Output tolerance is 220V ±5% or 230V -10%~+5% for 24V and 48V input; and 220V -6%~+5% or 230V -10%~+5% with 12V battery input.

Technical Specifications

Inverter-Type	UP3000-M2142	UP3000-M6142	UP5000-M6342	UP5000-M8342
Article nummber	21423000	61423000	63425000	83425000
EAN Code	4260558572466	4260558572534	4260558572541	4260558572558
Nominal battery voltage	48VDC	48VDC	48VDC	48VDC
Battery input voltage range	43,2 – 64VDC	43,2 – 64VDC	43,2 – 64VDC	43,2 – 64VDC
Continuous output power	2400W	2400W	4000W	4000W
Output Power(15min)	3000W	3000W	5000W	5000W
Overload power (5s)	4800W	4800W	8000W	8000W
Max. surge power	6000W	6000W	10000W	10000W
Output voltage range	220VAC±5%,230VAC(-10%～+5%)	220VAC±5%,230VAC(-10%～+5%)	220VAC±5%,230VAC(-10%～+5%)	220VAC±5%,230VAC(-10%～+5%)
Output frequency	50/60±0.1Hz	50/60±0.1Hz	50/60±0.1Hz	50/60±0.1Hz
Output wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Max.efficiency	95%	95%	95%	95%
Transfer time	20ms	20ms	20ms	20ms
Utility input voltage range	160VAC～280VAC	160VAC～280VAC	160VAC～280VAC	160VAC～280VAC
Max. Utility charge current	15A	15A	30A	30A
Max.PV input Power/Max.PV open circuit voltage	1040w/150v	3000W/150V	3000W/150V	4000W/200V
Max.PV charging current	20A	60A	60A	80A
Equalization voltage	58,4V	58,4V	58,4V	58,4V
Boost-voltage	57,6V	57,6V	57,6V	57,6V
Float voltage	55,2V	55,2V	55,2V	55,2V
Temperature compensate coefficient	-3V/°c/2V (Default)	-3V/°c/2V (Default)	-3V/°c/2V (Default)	-3V/°c/2V (Default)
Working environment temperature	-20°c-50°c(full input and output with no derating)	-20°c-50°c(full input and output with no derating)	-20°c-50°c(full input and output with no derating)	-20°c-50°c(full input and output with no derating)
Enclosure	IP30	IP30	IP30	IP30
Dimension(cm)	44,4 * 30 * 12,6	51,8 * 31 * 16,8	61,4 * 31,5 * 17,8	61,4 * 31,5 * 17,8
Weight(Net)	7,3kg	14,7kg	16,6kg	17,5kg
