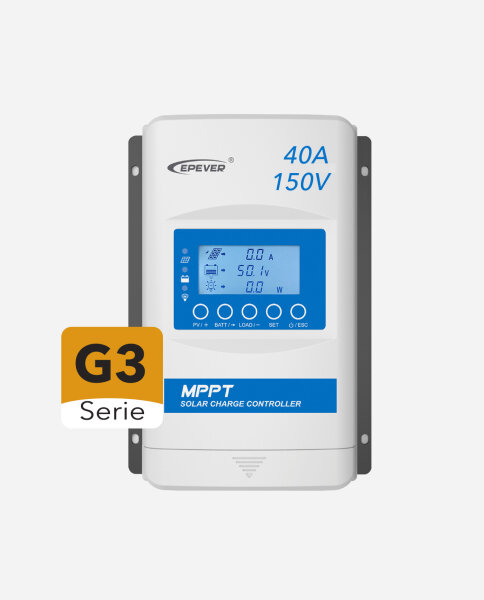

EPEVER®XTRA N G3 MPPT Solar charge controller, 40A,12/24/36/48V 150V

EPEVER®XTRA N G3 MPPT Solar charge controller, 40A,12/24/36/48V 150V

SKU: 2194415
GTIN: 4260558572602
Category: MPPT
Manufacturers: EPEVER

selbstdefiniert

127.69 € 0% MwSt. - § 12 Abs. 3 UStG

151,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Zum mehrwertsteuerbefreiten Produkt

Currently out of stock

EPEVER®XTRA N G3 MPPT solar charge Controller new version

The XTRA-N G3 series controllers – a state-of-the-art solution for solar charge control. With advanced MPPT algorithms for efficient energy tracking, as well as features like independent voltage regulation and comprehensive electronic protections, these controllers provide a reliable and durable solution for a wide range of solar applications – from RVs to household systems. Upgrade your solar system with the XTRA-N G3 series.

Special features

High quality and low failure rate components of ST or IR to ensure the service life
Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
Maximum DC/DC transfer efficiency is as high as 98.6%; full load efficiency is up to 96.6%
Advanced MPPT control algorithm to minimize the lost rate and lost time
Accurate recognizing and tracking of multi-peaks maximum power point
Wider MPP(maximum power point) running voltage to optimize PV utilization
Support multi battery types including lithium batteries
Equipped with a stable self-activation function for the lithium battery
Set the battery voltage parameters on the LCD
Battery temperature compensation
Limit the charging power & charging current to no higher than the rated value
Real-time energy statistics function
Charging power reduction automatically for over-temperature
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Setting parameters via the PC software, APP, or remote meter
Constant voltage output function
Comprehensive electronic protections
Multiple load work modes
Dustproof and waterproof design with IP33 enclosure
Ultra-quiet, low-power consumption design
Operation at full load without charging power reduced in the working temperature range

Technical specifications

Model	XTRA4415N G3
System nominal voltage	12/24/36/48VDC① Auto
Nominal charging current	40A
Nominal discharge current	40A
Battery voltage range	8 ~ 62V
Max. PV open circuit voltage	150V(At minimum operating environment temperature) ; 138V(At 25℃ environment temperature)
MPPT voltage range	Battery voltage + 2V ~ 108V
Max. PV input power	520W / 12V; 1040W / 24V; 1560W/36V; 2080W/48V
Maximum Conversion Efficiency	98.50%
Maximum Load Efficiency	97.20%
Static Losses (Enable the com. port)	≤ 15mA(12V) ; ≤ 9mA(24V);≤ 8mA(36V); ≤ 7mA(48V)
Static Losses (Disable the com. port)	≤ 8mA(12V); ≤ 5mA(24V); ≤ 5mA(36V) ; ≤ 5mA(48V)
Voltage drop of the discharge circuit	≤0.23V
Temperature compensation coefficient②	-3mV/℃/2V (Default)
Grounding	Common negative
RS485 Port	5VDC/200mA(RJ45)
LCD Backlight Time	Default: 60S, Range: 0~999S(0S: the backlight is ON all the time)
Working environment temperature③	-25℃~+50℃
Storage Temperature Range	-20℃~+70℃
Relative Humidity	< 95 % (N.C.)
Pollution Degree	PD2
Dimension (mm)	255 * 189 * 83.2
Weight (kg)	2.60

① Whenalithiumbatteryisused,thesystemvoltagecan’tbeidentifiedautomatically.

② Whenalithiumbatteryisused,thetemperaturecompensationcoefficientmustbe“0”andcan’tbechanged.

③ Thecontroller can fully load working in the work temperature range. When the internal temperature reaches 81℃, the reducing charging power mode is turned on.
