Sunshare® Glory Balcony Power Station – Hybrid Inverter with 2.0kWh Solar Energy Storage (Semi-Solid-State Lithium Battery) + Adapter Cable (0.5m, 1 Pair)

Sunshare® Glory Balcony Power Station – Hybrid Inverter with 2.0kWh Solar Energy Storage (Semi-Solid-State Lithium Battery) + Adapter Cable (0.5m, 1 Pair)

SKU: 00-9102005-Sunshare
Category: Lithium-ion battery

Complete balcony solar power system solution
Expandable storage capacity with up to 5 stackable battery units
Maximum continuous output power (On-Grid): 800W
Maximum continuous output power (Off-Grid): 1200W
LiFePO₄ semi-solid-state lithium battery with 38.4V input voltage
>7000 life cycles at 0.5C, 25°C, 70% DOD

539,00 €

incl. 0% VAT , plus

Currently out of stock

Safe. Intelligent. Independent.
The future of balcony solar power systems starts here.

The Sunshare® Glory Balcony Power Station with 2.0kWh storage is an intelligent all-in-one energy solution designed for balcony solar systems and small photovoltaic installations. The system combines a hybrid inverter, battery storage, and energy management into one compact and modular design.

With the new 2.0kWh version, the system offers increased storage capacity and maximum flexibility. The battery storage can be expanded modularly and stacked up to 10kWh to efficiently meet your household’s energy demands.

Thanks to the integrated Energy Management System (EMS) and app-based monitoring, excess solar energy is automatically stored and supplied when needed. This helps maximize self-consumption and significantly reduce long-term electricity costs.

The innovative eXtraSolid™ battery technology, featuring automotive-grade semi-solid-state cells, ensures maximum safety, extended lifespan, and reliable daily performance.

Smart Energy Management Made Simple

Smart Meter x EMS-Logik
Basic Mode: No extra setup-automatically prioritizes self-consumption to reduce grid feed-in.
Smart-Meter-Modus: Works with EMS and smart meter to monitor power flow in real time, intelligently schedule loads, andoptimize savings.

Special Features

2.0kWh battery storage– ideal for balcony solar systems and small PV installations
Modular expansion up to 10kWh through stackable battery modules
Hybrid inverter and battery storage combined in one system for simple installation
PV input power up to 2400W for high-performance solar modules
Up to 3200W total PV capacity when combined with existing 800W balcony solar systems
2 independent MPPT inputs for optimized solar energy harvesting
Emergency backup power during outageswith up to 1200W output power
Intelligent Energy Management System (EMS) with app control and real-time monitoring
eXtraSolid™ semi-solid-state battery technology for enhanced safety
Integrated fire suppression systemand intelligent BMS monitoring system
Over 7000 charging cycles and an expected lifespan of more than 20 years

Intelligent & Safe Energy Storage

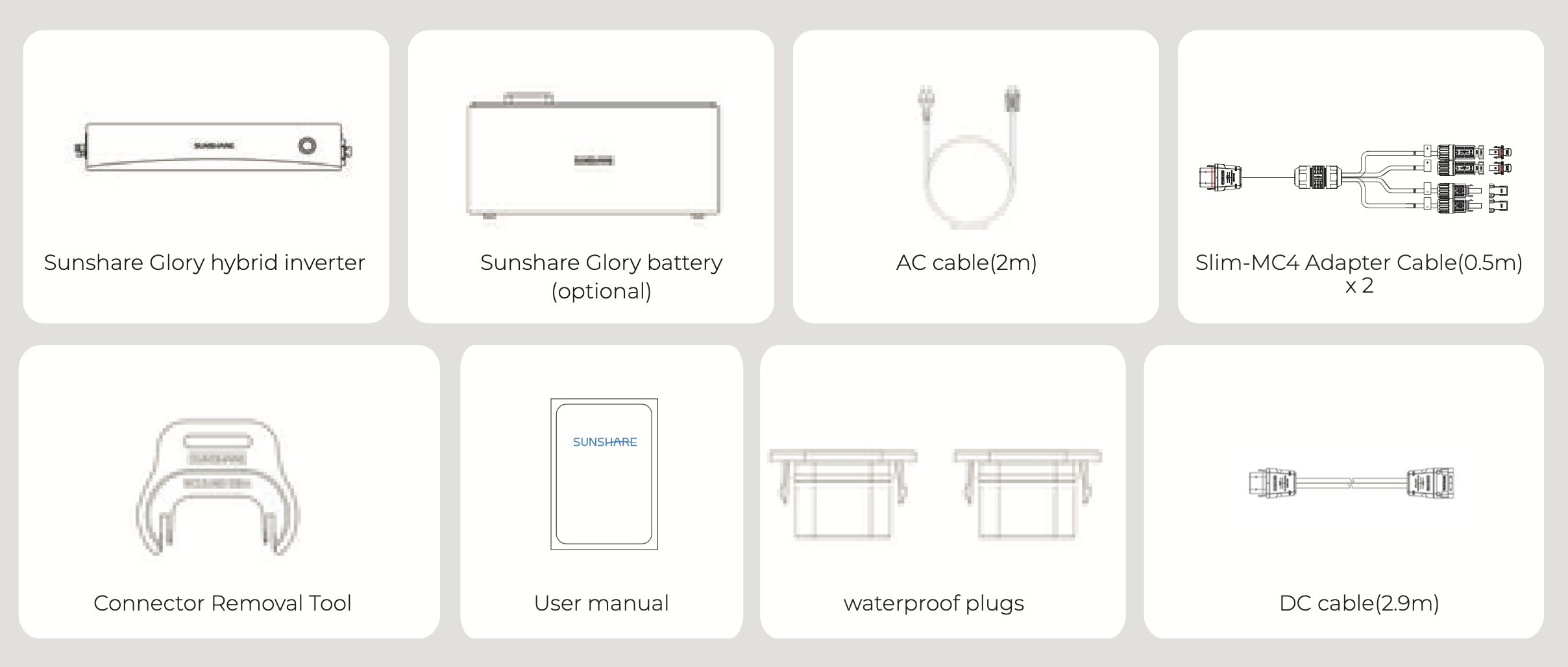

Package Contents:

Technical Specifications

Model
Inverter Model	SR-C1K2EU
Battery Module Model	SR-E2K0EU
PV-Input
Max. Input Power	2400W (1200W × 2)
Max. Input Voltage	59V DC
Max. Input Current	30A DC
MPPT Voltage Range	22 - 57V DC
MPPT Voltage Range (Full Load)	40 - 45V DC
Number of MPPT Channels	2
AC-Input
Rated Input Power	1200W
Rated Input Current	5.22A
Grid Voltage / Frequency	230V AC, 50Hz / 60Hz
Max. Input Current	8A
AC-Output (On-Grid)
Rated Output Power	800W
Rated Output Current	3.48A
Grid Voltage / Frequency	230V AC, 50Hz / 60Hz
AC-Output (Off-Grid)
Rated Output Voltage / Frequency	230V AC, 50Hz
Rated Output Power	1200W (minimum 2 batteries required)
Peak Output Power	1800W (10s)
Battery Model
Battery Type	Semi-Solid-State Battery (LiFePO₄)
Battery Life Cycle	7000 Cycles
Charging Temperature	0 °C to +55 °C
Operating Temperature	−20 °C to +55 °C
Discharge Temperature	−20 °C to +55 °C
Expandable Battery Units	max. 5
Rated Battery Capacity (2.0kWh)	53Ah / 2035.2Wh
Rated Battery Voltage (2.0kWh)	38.4V DC
General Information
Protection Rating	IP65
Protection Class	Class I
Overvoltage Category	DC II / AC II
Cooling	Natural Convection
Operating Temperature	−20 °C to +55 °C
Humidity	0 % – 95 %
Wireless Connectivity	Bluetooth, 2.4 GHz WIFI
Max. Operating Altitude	2000m
Certifications	VDE-AR-N 4105, IEC 62109, IEC 62619, UN38.3, EN 18031, IEC 61000
Dimension (L × B × H) and Weight
Inverter	455 × 232 × 84mm / 7.5 ± 0.5kg
Battery Module	455 × 232 × 225mm / 21.5 ± 0.5kg

Sunshare® Connection Cable: Sunshare Connector to MC4 Connectors (0.5m)

Safety Instructions and Precautions:

Intended Use ： This cable is designed for connecting Sunshare micro-storage systems/inverters to solar modules from other brands.
Input Ratings per MPPT : Please note that the permissible input voltage for each MPPT channel of the Sunshare micro-inverters/storage systems is 60 V, and the permissible current is 30 A.
Current Capacity : When connecting multiple solar modules, ensure that the total system current does not exceed the maximum permissible input current of the Sunshare inverters/micro-storage systems.
Connection Variant : The solution shown in Connection Diagram 3 requires the combined use of a 1.5 m extension cable and a 0.5 m extension cable.

Features:

Cable Material: Copper
Specifications: 0.5 m cable with a conductor cross-section of 4 mm², supporting currents up to 30 A.
Application: Connect Sunshare energy storage systems or microinverters to solar modules from other brands.
One adapter cable is suitable for the parallel connection of two solar modules.
