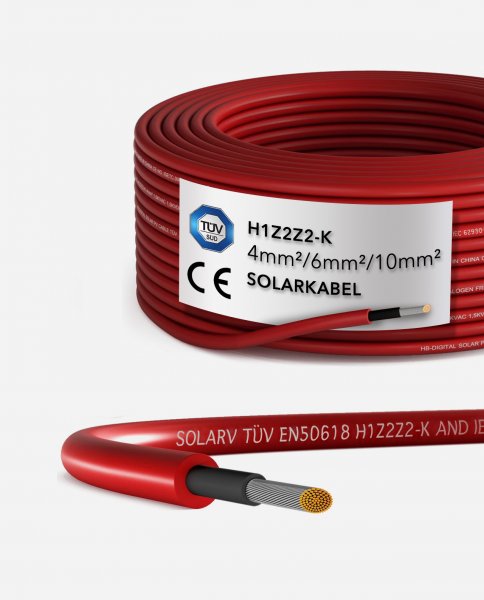

enjoy solar® Solar cable PLUS 10mm² in red

enjoy solar® Solar cable PLUS 10mm² in red

SKU: 00-5100210
GTIN: 4260558572763

In a solar power system of rated voltage U0=1.5KV, PV cables are used for the connection between solar panels and controllers.
High resistance against UV, ozone and hydrolysis and weather resistant; Expected life span of over 25 years.
Suitable for MC4 adapter (male and female).Applicable to all common connectors.
Conductor: soft, tinned, annealed copper according to IEC 60228, class 5;
TÜV tested according to EN 50618: 2014;
2 years manufacturer warranty.

diameter

1,72 €

incl. 0% VAT , plus

Available immediately

Description
Reviews

Features:

PV cables for use in a solar power system of rated voltage U0=1.5KV
Suitable for MC4 adapter (male and female).
Applicable to all common connectors
E-beam cross-linked compounds
High resistance against UV, ozone and hydrolysis and weather resistant
High temperature resistance; materials will not melt or flow
Flexibility under cold conditions
Long life span of over 25 years

Technical dataStructure

Conductor: Soft tinned annealed copper according to IEC 60228, class 5
Insulation: XLPE, flame retardant, halogen free, E-beam crosslinked compounds
Jacket: XLPE, flame retardant, halogen free, E-beam cross-linked compounds UV and ozone resistant, black/white marking
Jacket color: red or black; other colors (custom production required)

Thermal Performance

Operation temperature: -40℃ ～ +120℃
Ambient temperature: -40℃ ～ +90℃
Maximum short circuit temperature: 250℃

Bending radius

Fixed setting: >4 × ø
Moves on occasion: >5 × ø

Material characteristics / standard

Fireproof performance: EN 60332-1-2
Smoke emission: EN 61034-1; EN 61034-2
Low fire load: DIN 51900
Approval: TÜV EN50618
Applied Standard: TÜV EN50618

Electrical performance

Rated voltage: U0=1.5kV
DC test voltage: 6.5kV AC 5min

Artide Number	510××04	510××06	510××10
conductor cross-section (mm²)	1×4.0	1×6.0	1×10.0
N/mm	56/0.28	84/0.28	80/0.4
Insulation Thickness	0.95	1.02	0.7
Jacket Thickness(mm)	0.8	0.9	0.8
OD(mm)	6.0	6.87	7.13
Max.mΩ/m	5.09	3.39	1.95
Ca.mΩ/m	4.85	3.28	1.75
Ampacity(A)	55	70	98

FAQ：1) 4mm² or 6mm²? -If your cable is quite short and your rated current is below 30A, you can use 4mm². Otherwise, 6mm² is better.2) When is a MC4 connector needed? -When you extend the cable and also when you want to connect the modules in parallel.3) When is a Y-connector needed? -When you connect the modules in parallel.4) How many MC4 connectors are needed? -If you want to extend the cable of one module, then you need only one MC4 connector. If you want to connect 2/ 3 / 4 / 5 modules in parallel, then you need 1 / 3 / 4 / 5 plugs from these connectors.5) How many Y connectors are needed? -If you want to connect 2 / 3 / 4 / 5 modules in parallel, then you need 1 / 3 / 4 plugs from these connectors.6) How many connectors are supplied? -Always one plus and one minus plug.7) Which cable should be used? -MC4 connector and cable should have the same size.
