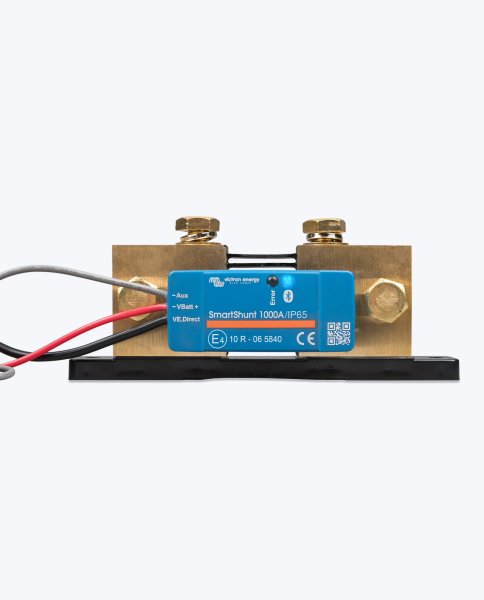

Victron Energy SmartShunt Batteriemonitor IP65 1000A

Victron Energy SmartShunt Batteriemonitor IP65 1000A

SKU: 4201050
GTIN: 8719076055617
HAN: SHU065210050
Category: Lithium-ion battery
Manufacturers: Victron

Precision battery monitor with 99.6% measurement accuracy
Real-time monitoring of state of charge, voltage, and current via the VictronConnect app
Bluetooth Smart and VE.Direct for easy integration and remote monitoring
Compatible with lithium, AGM, gel, and lead-acid batteries
Expandable with a temperature sensor, second battery, or midpoint monitoring
Ideal for motorhomes, boats, as well as off-grid and stationary energy systems

120.97 € 0% MwSt. - § 12 Abs. 3 UStG

143,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Zum mehrwertsteuerbefreiten Produkt

Currently out of stock

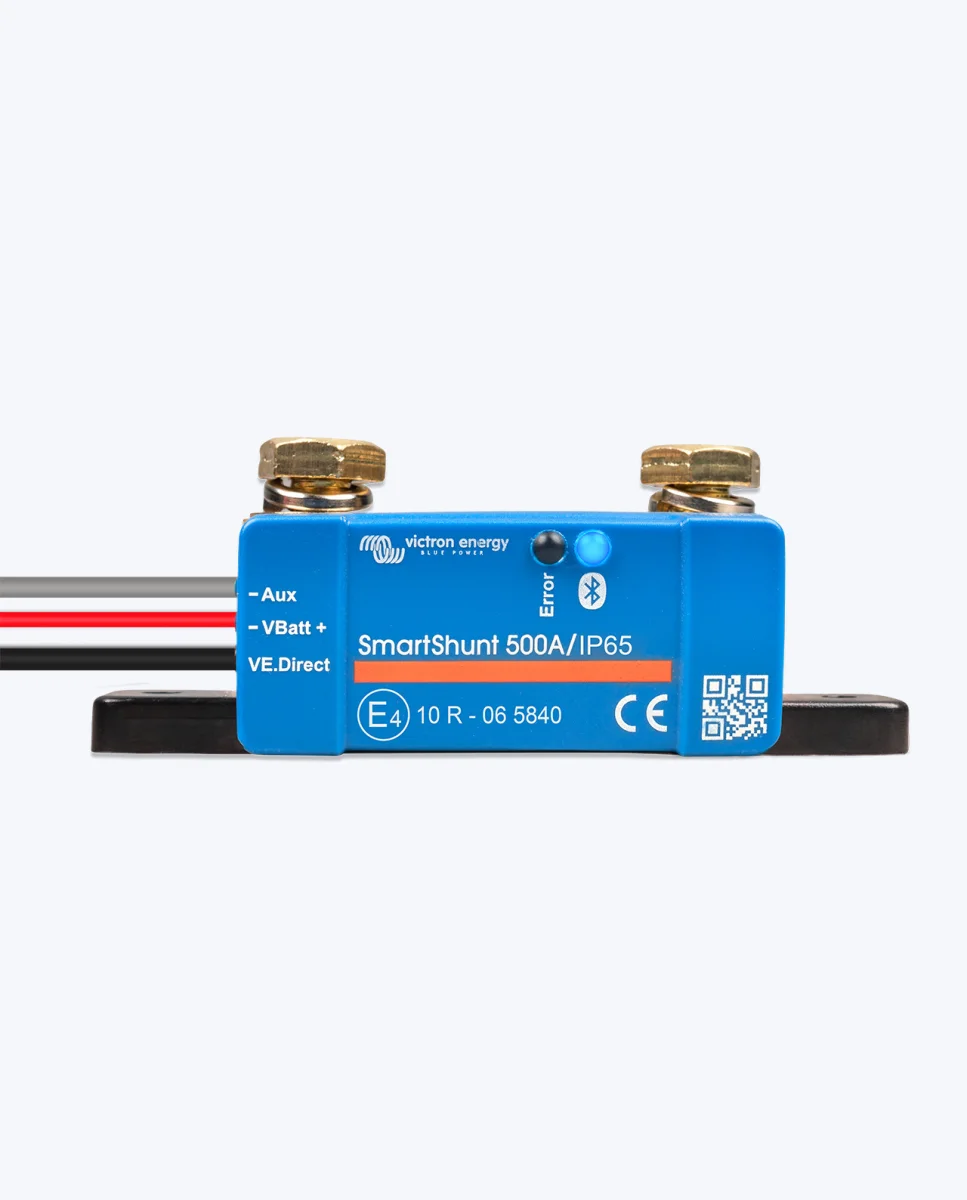

Victron Energy SmartShunt IP65 battery monitor 500A and 1000A

INTELLIGENT BATTERY MONITOR WITHOUT A DISPLAY

SmartShunt 500A / 1000A. Precise data. Full control.

The Victron Energy SmartShunt monitors battery state of charge, voltage, current and time remaining with high accuracy. All essential values are available directly on a smartphone or tablet through the VictronConnect app.

99.6% measurement accuracy for reliable battery monitoring
Integrated Bluetooth Smart and VE.Direct interface
For 6.5–70V DC and lithium, AGM, gel and lead-acid batteries

500 / 1000AAvailable versions

6.5–70VSupply voltage

99.6%Measurement accuracy

IP65Protection rating

SMARTSHUNT BATTERY MONITOR

More than a current meter. The complete battery status.

The SmartShunt combines precise shunt measurement with intelligent analysis and wireless monitoring—in a space-saving, retrofit-friendly design without a separate display.

Precise real-time values

Battery voltage, charging and discharging current, state of charge and time remaining are continuously measured and clearly displayed in VictronConnect.

Smartphone instead of a display

Integrated Bluetooth connects the SmartShunt directly to a smartphone or tablet, keeping the installation compact and particularly flexible.

Comprehensive battery history

Stored trend data, charge cycles and discharge values help assess battery condition and optimise the energy system with confidence.

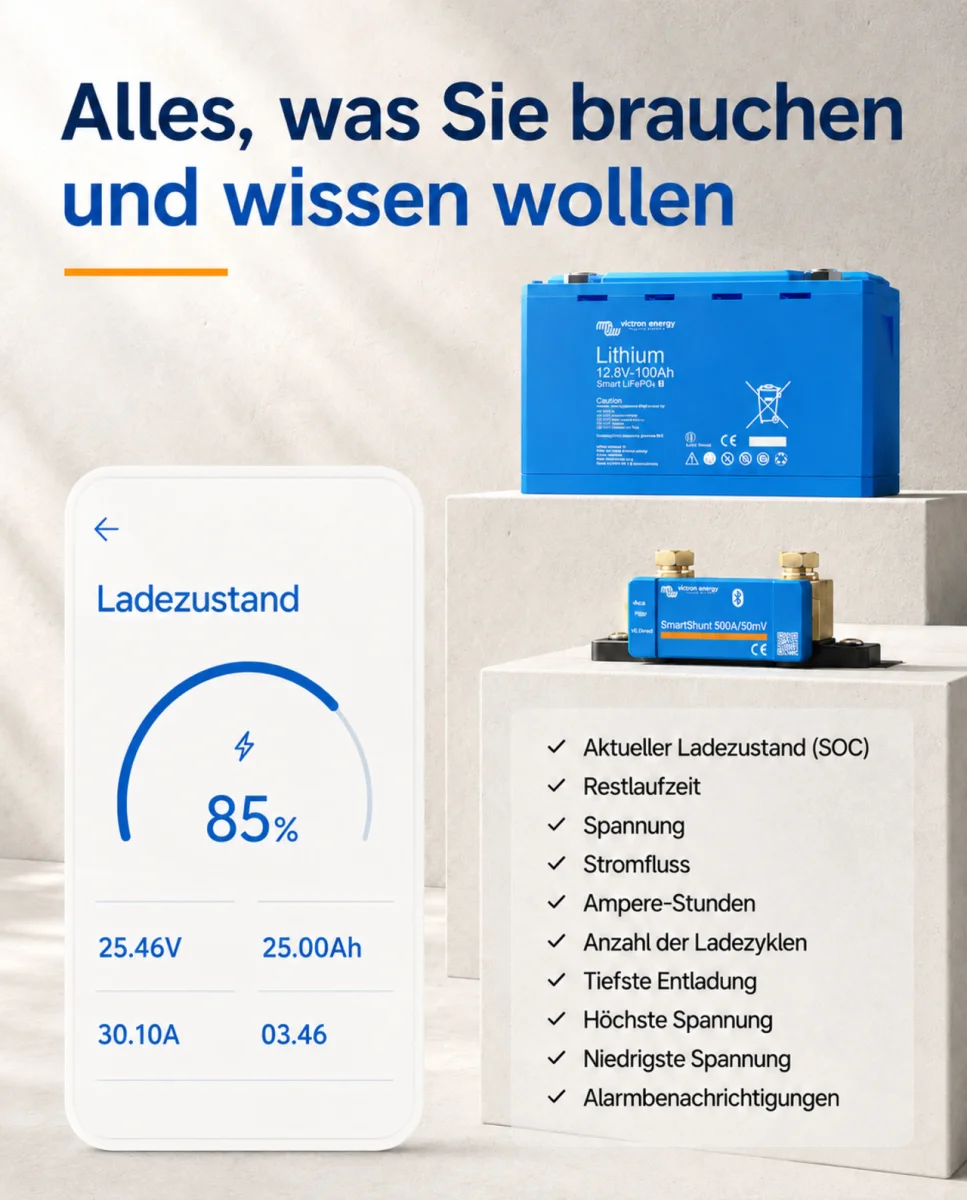

SmartShunt IP65 battery data and state of charge in VictronConnect

BLUETOOTH SMART & SYSTEM INTEGRATION

Battery data at a glance

VictronConnect turns a smartphone into a wireless display. VE.Direct also allows the SmartShunt to be integrated into a GX system and, optionally, the Victron Remote Management Portal.

Monitor state of charge, voltage, current and time remaining in real time
Configure alarms and battery parameters
46 days of trend data for detailed system analysis
Wireless data sharing via VE.Smart Networking

SmartShunt IP65 1000A for high-power battery systems

TWO CURRENT RATINGS

500A or 1000A. Matched to your energy system.

Both versions provide the same intelligent monitoring features. The right choice depends on the system’s maximum current and the available installation space.

500A: compact housing measuring 46 × 120 × 54mm
1000A: for higher system currents, 68 × 168 × 75mm
Robust M10 shunt connections on both versions
AUX input for a second battery, midpoint monitoring or temperature sensor

Easy installation of the Victron SmartShunt IP65 500A

EASY INSTALLATION & RETROFITTING

Quick to install. Cleanly integrated.

The SmartShunt installs compactly in the battery negative line and requires no separate display. Clearly assigned connections and the supplied connection cables simplify both new installations and retrofits in existing battery systems.

Separate M10 connections for battery negative and system negative
AUX input for a second battery, midpoint or temperature monitoring
VE.Direct connection for integration into Victron GX systems
Suitable for boats, off-grid systems, motorhomes, commercial vehicles and backup power systems

TECHNICAL DATA

SmartShunt IP65 500A / 1000A

The most important values at a glance. Open the complete combined data table whenever you need more detail.

500 / 1000AShunt versions

6.5–70V DCSupply voltage

< 1mACurrent draw

1–9,999AhBattery capacity

± 0.4%Current measurement accuracy

IP65Dust and water protection

Complete technical data 27 specifications

SmartShunt IP65	500A / 1000A
Model number	SHU065210050
Product type	Intelligent battery monitor without a display
Available versions	500A / 1000A
Supply voltage	6.5–70V DC
Current draw	< 1mA
Auxiliary battery input voltage	6.5–70V DC
Supported battery capacity	1–9,999Ah
Operating temperature	-40°C to +50°C
Temperature measurement range (optional)	-20°C to +50°C
Second battery / midpoint monitoring / temperature sensor	Yes, via AUX input
Bluetooth	Integrated
Data communication	VE.Direct
Current measurement resolution	± 0.01A
Voltage measurement resolution	± 0.01V
Amp-hour measurement resolution	± 0.1Ah
State of charge (SoC) resolution	± 0.1%
Time remaining resolution	± 1 minute
Current measurement accuracy	± 0.4%
Voltage measurement accuracy	± 0.3%
Protection rating	IP65, dust-tight and water-resistant
Shunt connections	500A and 1000A: M10
Dimensions (H × W × D)	500A: 46 × 120 × 54mm 1000A: 68 × 168 × 75mm
Stored data	Battery voltage, current, state of charge (SoC), AUX input for starter battery, battery temperature or midpoint monitoring
Stored trend period	46 days
Scope of delivery	Two 1.5m connection cables with 1A fuse
VE.Direct cable	Available separately, required for GX devices
Optional accessory	Temperature sensor ASS000100000
Standards	EN 60335-1, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3, EN 50498

Note: Select the 500A or 1000A version to match the maximum current of your system. Install the shunt in the battery negative line; all loads and charging sources must be connected to the system side of the shunt.
