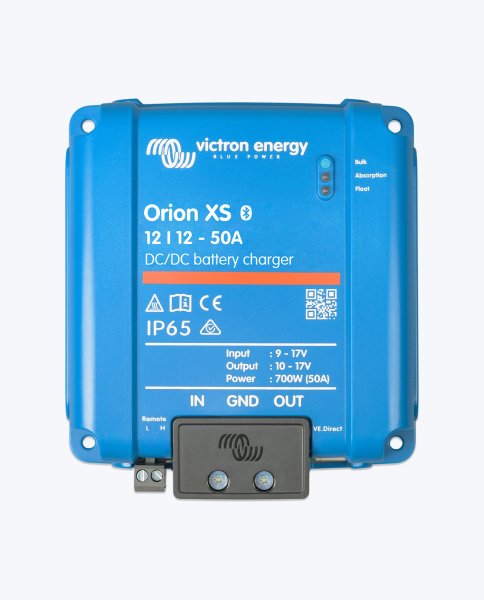

Victron Energy Orion XS 12/12-50A DC-DC battery charger

Victron Energy Orion XS 12/12-50A DC-DC battery charger

SKU: 4312050
GTIN: 8719076068501
HAN: ORI121217050
Category: Lithium-ion battery
Manufacturers: Victron

DC-DC battery charger for 12V dual-battery systems
Up to 50A charging current and 700W charging power
Efficiency of up to 98.5%
Bluetooth Smart, VE.Direct, and VE.Smart Networking
Suitable for smart alternators as well as lithium, AGM, gel, and lead-acid batteries
Rugged IP65 enclosure and infinitely expandable in parallel

232.73 € 0% MwSt. - § 12 Abs. 3 UStG

276,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Zum mehrwertsteuerbefreiten Produkt

Currently out of stock

INTELLIGENT DC-DC BATTERY CHARGER

Orion XS 12/12-50A. Maximum charging power on every journey.

The Victron Energy Orion XS reliably charges the auxiliary battery from the vehicle alternator. Up to 50A charging current, 700W output and intelligent control ensure efficient battery charging, even with modern Euro 5 and Euro 6 smart alternators.

Freely adjustable charging current from 1A to 50A
Up to 98.5% efficiency and 700W output power
Bluetooth Smart, VE.Direct and VE.Smart Networking

50AMax. charging current

700WOutput power

98.5%Max. efficiency

IP65Protection rating

ORION XS 12/12-50A

Charge efficiently. Protect the starter battery. Stay independent on the road.

The compact Orion XS combines high charging power with intelligent engine-running detection and adaptive charging—ideal for motorhomes, campervans, boats and commercial vehicles.

For smart alternators

Automatic engine-running detection activates charging only while the engine is running and works reliably with the fluctuating voltages of modern alternators.

Adaptive battery charging

The four-stage charging algorithm and eight preconfigured battery profiles provide tailored charging for lithium, AGM, gel and lead-acid batteries.

High efficiency, less heat

Efficiency of up to 98.5% reduces energy loss and heat generation—for reliable performance even in demanding mobile applications.

Orion XS 12/12-50A with 700W charging power and 98.5 percent efficiency

REDESIGNED FOR OUTSTANDING PERFORMANCE

Up to 700W. Precisely adjustable to your needs.

VictronConnect allows the output current to be adjusted between 1A and 50A in fine 0.1A increments. This makes it possible to match the charging power precisely to the alternator, cabling and battery.

Continuous output power up to 700W
Charging current freely programmable from 1A to 50A
Up to 98.5% efficiency for low energy losses
Unlimited parallel expansion for higher charging power

Orion XS 12/12-50A for lithium, AGM, gel and lead-acid batteries

ADAPTIVE CHARGING PROGRAMMES

One solution for different battery types.

The adaptive four-stage charging algorithm guides the battery through each charging phase in a controlled manner. Preconfigured profiles and freely adjustable parameters simplify matching the charger to the battery system.

Suitable for lithium, AGM, gel and lead-acid batteries
Eight preconfigured battery profiles
Custom charging parameters via VictronConnect
Can also be used as a regulated DC power supply

TECHNICAL DATA

Orion XS 12/12-50A

The most important values at a glance. Open the complete data table whenever you need more detail.

9–17VInput voltage

10–17VOutput voltage

1–50AAdjustable output current

700WContinuous output power

98.5%Max. efficiency

IP65Dust and water protection

Complete technical data 27 specifications

DC-DC battery charger	Orion XS 12/12-50A
Model number	ORI121217050
Input voltage range	9–17V
Output voltage range	10–17V
Voltage accuracy	± 0.25%
Output voltage noise	10mV RMS
Adjustable charging/output current	1–50A
Maximum short-circuit current	50A
Continuous output power	700W
Maximum efficiency	98.5%
No-load current draw	< 100mA
Standby current draw	< 1.5mA
Power supply mode	Yes
VictronConnect app / Bluetooth Smart	Yes
VE.Smart Networking	Yes
VE.Direct	Yes, including DVCC
Operating temperature	-20°C to +60°C
Humidity	Max. 95%, non-condensing
Maximum operating altitude	2,000m
Pollution degree	PD2
Overvoltage category	OVC I
DC connection	Screw terminals
Maximum cable cross-section	21.2mm² / 4 AWG
Protection rating	IP65
Dimensions (H × W × D)	137.3 × 123.1 × 40mm
Weight	0.33kg
Safety	IEC 62477-1
EMC	EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003
Automotive directive	ECE R10-6

Note: Charging current, cable cross-section and fuse rating must be matched to the alternator, battery and cable length. The Orion XS should be connected in accordance with the installation instructions and protected against short circuit.
