Victron SmartSolar MPPT 100/30 – Solar Charge Controller 30A, 12/24VDC with Integrated Bluetooth

Victron SmartSolar MPPT 100/30 – Solar Charge Controller 30A, 12/24VDC with Integrated Bluetooth

SKU: 2410030
GTIN: 8719076040170
HAN: SCC110030210
Category: MPPT
Manufacturers: Victron

Up to 98% efficiency for efficient battery charging
Bluetooth Smart for configuration and monitoring via the VictronConnect app
Fully programmable charging algorithm with pre-programmed charging profiles
SafetyShield+ with comprehensive protection features and maintenance-free, passive cooling
Ideal for motorhomes, boats, and off-grid or standalone systems
Support for various battery technologies

94.95 € 0% MwSt. - § 12 Abs. 3 UStG

112,99 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Zum mehrwertsteuerbefreiten Produkt

Currently out of stock

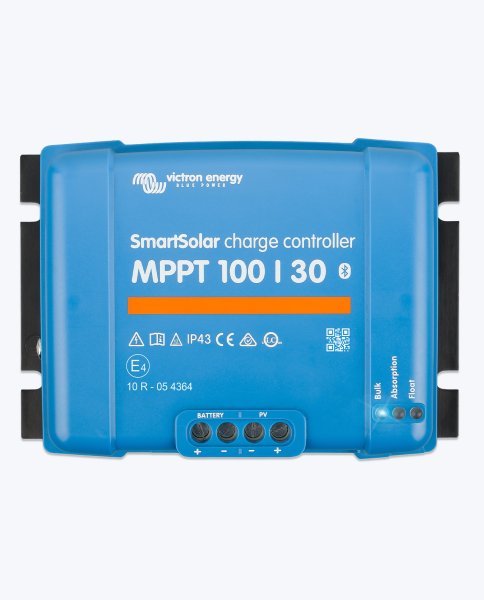

Victron SmartSolar MPPT 100/30 solar charge controller

INTELLIGENT MPPT SOLAR CHARGE CONTROLLER

SmartSolar MPPT 100/30. Efficient charging, intelligent monitoring.

The Victron Energy SmartSolar MPPT 100/30 combines 30A charging current and up to 100V PV open-circuit voltage with ultra-fast MPPT. This ensures efficient use of the available solar energy, even in changing light or partial shade.

Ultra-fast MPPT with up to 98% peak efficiency
Bluetooth configuration and real-time monitoring via VictronConnect
Adaptive charging profiles for lithium, AGM, gel and lead-acid batteries

30ARated charging current

100VMax. PV open-circuit voltage

12 / 24VBattery systems

98%Peak efficiency

SMARTSOLAR MPPT

More solar yield. Better battery protection.

SmartSolar combines fast tracking with intelligent charging tailored to the battery type—in a compact, silent design built for demanding conditions.

Ultra-fast MPPT

The controller finds the modules’ optimum operating point particularly quickly and uses the available solar power efficiently, even with clouds or partial shade.

Adaptive battery charging

Bulk, absorption and float charging stages are managed automatically. Suitable presets make it easy to match the controller to different battery types.

BatteryLife protection

The intelligent load output prevents excessive discharge. BatteryLife automatically adjusts the disconnect threshold to help extend battery life.

VictronConnect app for monitoring the SmartSolar MPPT 100/30

BLUETOOTH SMART & VICTRONCONNECT

System data at a glance

Integrated Bluetooth Smart connects the charge controller directly to VictronConnect. Settings, real-time values and performance history are available without additional accessories.

Monitor PV power, battery voltage and charging status in real time
Configure charging profiles, load output and custom alarms
Update firmware conveniently through the app
Optional VRM Portal integration via VE.Direct and a GX device

Victron SmartSolar MPPT 100/30 for mobile and off-grid energy systems

SAFETYSHIELD+ & SYSTEM INTEGRATION

Robust in operation. Flexible in the system.

Natural cooling and integrated protection features enable quiet, low-maintenance operation. Multiple compatible SmartSolar controllers can be synchronized to run charging stages together.

For motorhomes, caravans, boats and off-grid systems
Temperature-controlled charging and overtemperature protection
Protection against PV short circuit, reverse polarity and reverse current
Wireless charging synchronization of multiple controllers via Bluetooth

TECHNICAL DATA

SmartSolar MPPT 100/30

The most important values at a glance. Open the complete data table whenever you need more detail.

30ARated charging current

100VMax. PV open-circuit voltage

12 / 24VBattery voltage

440 / 880WPV power at 12 / 24V

98%Peak efficiency

IP43 / IP22Electronics / terminal area

Complete technical data 24 specifications

SmartSolar charge controller	SmartSolar MPPT 100/30
Model number	SCC110030210
Battery voltage (automatic selection)	12 / 24V
Rated charging current	30A
Nominal PV power (12V)	440W
Nominal PV power (24V)	880W
Maximum PV open-circuit voltage	100V
Max. PV array short-circuit current	35A
Peak efficiency	98%
Self-consumption	12V: 30mA 24V: 20mA
Absorption charge voltage	14.4V / 28.8V, adjustable
Float charge voltage	13.8V / 27.6V, adjustable
Charging algorithm	Multi-stage, adaptive
Temperature compensation	-16mV/°C or -32mV/°C
Protection	PV reverse polarity / output short circuit / overtemperature
Operating temperature	-30°C to +60°C, full rated output up to 40°C
Humidity	95%, non-condensing
Data communication port	VE.Direct
Colour	Blue (RAL 5012)
Power terminals	16mm² / AWG6
Protection rating	IP43 electronics / IP22 terminal area
Weight	1.3kg
Dimensions (H × W × D)	130 × 186 × 70mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
Stored data	Battery voltage, battery current, battery temperature, PV voltage and PV current
Stored trend period	46 days

Note: The charge controller must be selected and sized to match the maximum PV open-circuit voltage, the array short-circuit current and the battery voltage. If more PV power is connected, the controller limits the input power.

Model comparison

SmartSolar MPPT Series Comparison

Technical differences and suitable applications for the three SmartSolar ranges at a glance.

Feature	75/15 & 100/20	100/30 & 100/50	150/35
Application	Small to medium-sized solar systems	Medium to larger solar systems	Larger solar systems with long module strings
Max. PV open-circuit voltage	75 V / 100 V	100 V	150 V
Rated charging current	15 A / 20 A	30 A / 50 A	35 A
Battery voltage	12/24 V or 12/24/48 V, depending on model	12/24 V	12/24/48 V automatic, 36 V manual
Max. PV power	up to 1,160 W	up to 1,400 W	higher than 100/30, designed for larger PV systems
Load output	✔ Yes	✘ No	✘ No
BatteryLife-Algorithmus	✔ Yes	✘ No	✘ No
Bluetooth Smart	✔	✔	✔
VictronConnect App	✔	✔	✔
VE.Direct	✔	✔	✔
VE.Smart Networking	✔	✔	✔
Efficiency	Up to 98%	Up to 98%	Up to 98%
Warranty	5 years	5 years	5 years
