enjoysolar® Master aluminum bracket with adjustable angle of inclination 10° -30° (including all nuts and bolts)

enjoysolar® Master aluminum bracket with adjustable angle of inclination 10° -30° (including all nuts and bolts)

SKU: 00-5410002
GTIN: 4260558577997
Manufacturers: enjoy solar

Assembly instructions : ES - AHV - 02

30,82 €

incl. 0% VAT , plus

Available immediately

Description
Reviews

enjoysolar Master aluminium mounting brackets with solar panel

ADJUSTABLE SOLAR PANEL MOUNTING BRACKETS

Securely mount solar panels and adjust the tilt angle from 10° to 30°

The enjoysolar Master aluminium mounting brackets provide a compact support system for one solar panel. They are suitable for flat roofs, walls and open areas, allowing the panel tilt to be adapted to the location and season.

Adjustable tilt angle from 10° to 30°
Anodised, corrosion-resistant aluminium construction
Complete set including rubber pads and stainless steel screws

MASTER ALUMINIUM MOUNTING BRACKETS

Flexible alignment. Secure mounting. Versatile use.

The adjustable construction provides a defined installation angle and can be configured to suit the mounting surface and installation conditions.

Flexibly adjustable

The tilt range from 10° to 30° allows a flatter or steeper installation depending on the location, season and preferred orientation.

Designed for outdoor use

The anodised surface protects the aluminium against weathering and corrosion. The supplied mounting screws are made of stainless steel.

Complete set

Short and long supports, rubber pads and the required connecting screws are included and designed to work together.

Lieferumfang der enjoysolar Master Aluminium-Halterung ES-AHV-02

Robust & rust-proof

Corrosion- and UV-resistant

Anodizing involves the chemical application of an exceptionally hard protective layer to the aluminum. This layer offers superior protection against the elements, mechanical impact, and corrosion.

Rust-proof aluminum construction; ideal for tiltable solar panel mounts on walls, roofs, open ground, and flat roofs.
Easy to handle; suitable for wall, roof, and ground mounting; includes stainless steel mounting screws.
2 x short supports (front), 2 x long supports (rear), 4 x rubber pads (110 x 42 mm), 1 x stainless steel screw set (comprising 8 x M6.3 x 80 mm hex-head screws).

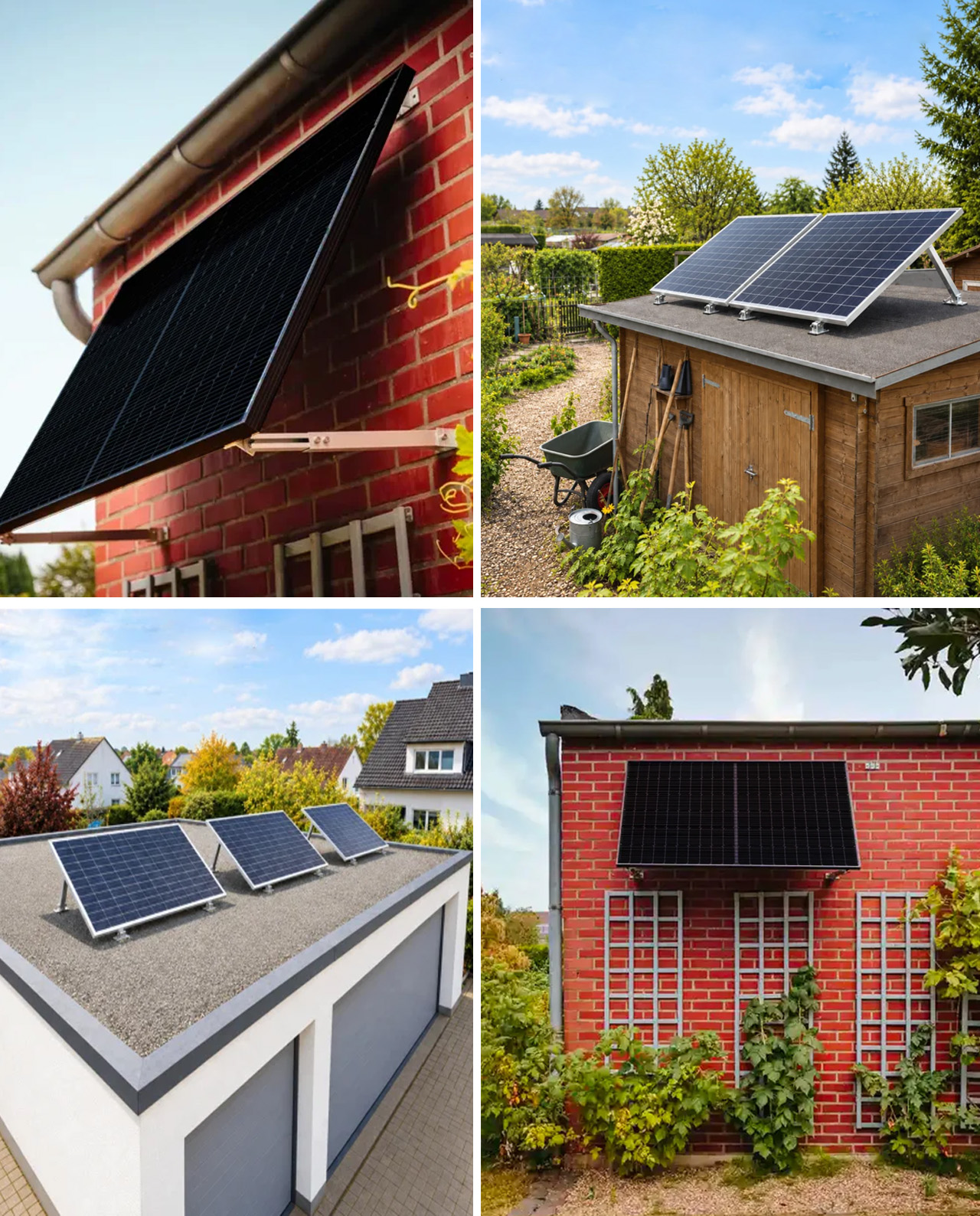

Solar panels with enjoysolar aluminium mounting brackets on a flat roof

FLAT ROOF, WALL & OPEN AREA

Versatile installation – the mounting surface is decisive.

The mounting brackets can be installed on different load-bearing surfaces. The selected fastening method must be suitable for the mounting surface and capable of permanently withstanding local wind and snow loads.

Suitable for flat-roof, wall and open-area installation
Rubber pads protect the contact surfaces of the brackets
Plan the installation to prevent panels from shading each other
Select anchoring and sealing materials for the specific installation

Einstellbare Neigungswinkel der enjoysolar Aluminium-Halterung von 10 bis 30 Grad

FLEXIBLER NEIGUNGSWINKEL

Adjust module tilt – with telescopic supports ranging 390 - 670mm

The rear telescopic supports are adjustable in length between 390 and 670 mm. This allows you to adjust the solar module's tilt to suit the installation site and the position of the sun.

Adjustable support length from 390 to 670 mm
Flexibly adjust module tilt
Set both supports equally and secure them firmly

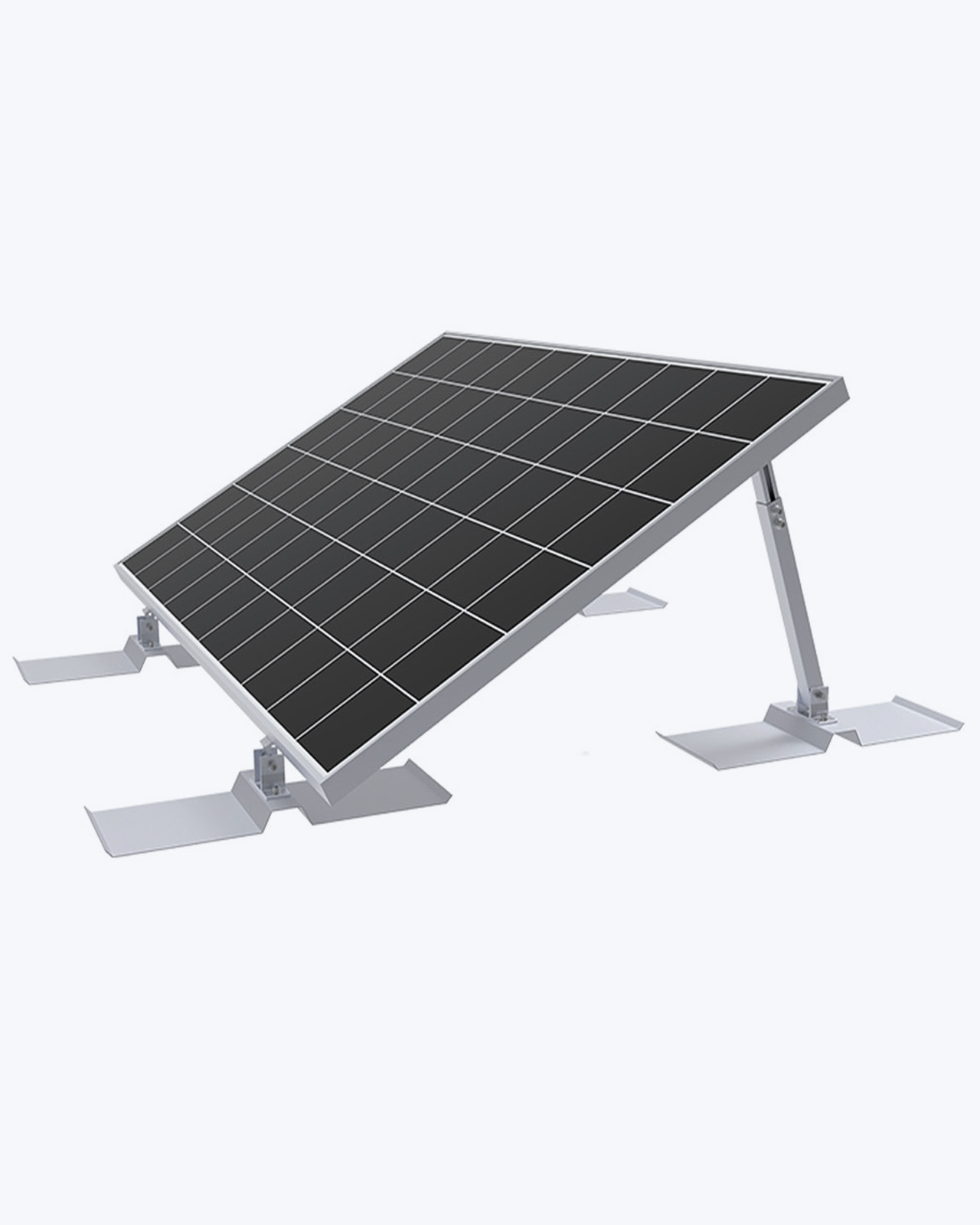

Optional enjoy solar ballast plate mounting system for flat-roof installation

OPTIONAL ACCESSORY · SOLD SEPARATELY

Flat-roof installation without penetrating the roof membrane.

This bracket can be combined with the separately available enjoy solar ballast plate mounting system. Ballast plates allow the bracket to be attached to suitable flat roofs and level surfaces without having to drill through the roof membrane.

Important: The ballast plate mounting system is not included and must be ordered separately. View the enjoy solar ballast plate mounting system.

TECHNICAL DATA

Master aluminium mounting brackets

The most important product data at a glance. Further details and information are available in the expandable sections.

10°–30°Tilt angle

1 panelConfiguration

4Support points

AluminiumAnodised material

56 × 12 × 9cmPackage dimensions

1.98kgWeight

Complete product data 10 specifications


Model	ES-AHV-02
Item number	5410002
GTIN	4260558573036
Material	Anodised aluminium
Fastening components	Stainless steel
Adjustable tilt angle	10° to 30°
Installation areas	Wall, roof, flat roof and open area
Rubber pads	4 pieces, each measuring 110 × 42mm
Package dimensions	56 × 12 × 9cm
Net weight	1.98kg

Check before purchase and installation 4 notes

The dimensions, frame profile and existing mounting holes of the solar panel must be compatible with the mounting brackets.
The load-bearing capacity of the surface and the local wind and snow loads must be checked before installation.
Suitable fastening and sealing materials are required for roof and wall installations; these are not included in the set.
The installation must be planned to prevent shading and ensure continued access for maintenance and cleaning.

Note: The suitability and required dimensions of the fastening system depend on the solar panel, the mounting surface and the local wind and snow loads. Installation and anchoring must be carried out professionally. Please also follow the ES-AHV-02 installation instructions.
