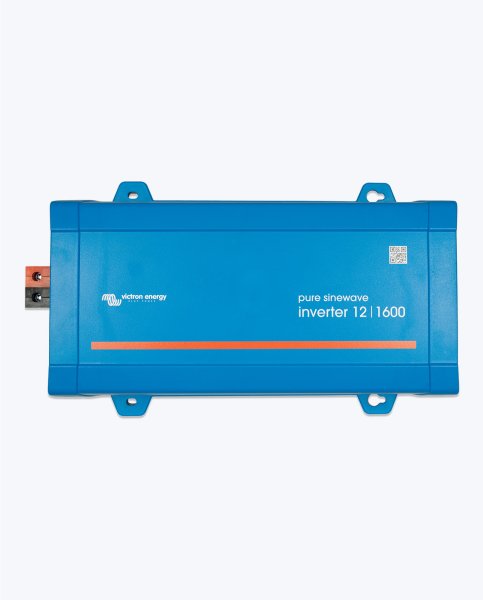

Victron Energy Inverter 12/1600 230V VE.Direct Schuko – 12V to 230V Inverter

Victron Energy Inverter 12/1600 230V VE.Direct Schuko – 12V to 230V Inverter

SKU: 00-3401612
GTIN: 8719076066347
HAN: PIN122161200
Category: Victron Reiner Sinus
Manufacturers: Victron

High-performance 12V to 230V inverter with 1450W continuous power output at 25°C
Up to 2100W peak power for loads with high inrush current
VE.Direct interface for monitoring and configuration
ECO mode for reduced self-consumption during low-load operation
Schuko output (CEE 7/4) for direct connection of 230V appliances
Ideal for motorhomes, camper vans, and boats, as well as off-grid and standalone systems

220,97 €

incl. 0% VAT , plus

Low stock level

Description
Reviews
PDF (3)

PURE SINE WAVE INVERTER

Inverter 12/1600 VE.Direct. Reliable 230V power from 12V.

The Victron Energy Inverter 12/1600 VE.Direct SCHUKO converts the energy from a 12V battery system into a stable 230V sine wave output. 1.450W continuous power at 25°C, 1.600W for one hour and up to 2.100W peak power reliably supply even demanding appliances.

Pure sine wave output with up to 2.100W peak power
VE.Direct for configuration, monitoring and system integration
SCHUKO output for direct connection of 230V appliances

1.450WContinuous power at 25°C

1.600WPower for 1 hour

2.100WPeak power for 15s

91%Max. efficiency

INVERTER 12/1600 VE.DIRECT SCHUKO

Clean power quality. High power reserve. Intelligent control.

The Inverter 12/1600 combines precise sine wave output with high overload capacity, an energy-saving ECO mode and VE.Direct communication – for mobile, off-grid and professional energy systems.

Pure sine wave output

The stable 230V output voltage is also suitable for sensitive electronics, audio equipment, measuring systems and other demanding appliances.

High power reserve

Up to 2.100W peak power supports the reliable start-up of appliances whose inrush current exceeds their normal operating power.

Energy-saving ECO mode

At low or no load, ECO mode reduces self-consumption to just 1W and automatically reactivates normal operation.

HIGH POWER & SCHUKO OUTPUT

Supply 230V appliances directly and reliably.

The integrated SCHUKO socket allows suitable 230V appliances to be connected directly. High continuous and peak power provide reserves for appliances with increased inrush current.

1.450W continuous power at 25°C and 1.300W at 40°C
1.600W time-limited power for up to 1 hour
2.100W peak power for up to 15 seconds
230V AC ±3% with pure sine wave output

VE.DIRECT & SYSTEM INTEGRATION

Configurable, monitorable and flexibly controlled.

VE.Direct allows the inverter to be configured and monitored with VictronConnect. With optional accessories, integration into a GX system and the VRM Portal is also possible.

Monitor battery voltage, output voltage, load and alarms
Configure output voltage, frequency and battery voltage limits
Optional Bluetooth via the VE.Direct Bluetooth Smart dongle
Remote on/off via an external switch, BMS or compatible components

TECHNICAL DATA

Inverter 12/1600 230V VE.Direct SCHUKO

The most important values at a glance. You can open the complete data table if required.

12VBattery system

9,2–17VInput voltage

1.450WContinuous power at 25°C

1.600WPower for 1 hour

2.100WPeak power for 15s

91%Max. efficiency

Complete technical data 30 specifications

Pure sine wave inverter	Inverter 12/1600 VE.Direct SCHUKO
Battery voltage	12V DC
DC input voltage range	9,2–17V
Output voltage	230V AC ±3%
Output frequency	50 / 60Hz ±0,1%, adjustable
Continuous power at 25°C	1.450W
Continuous power at 40°C	1.300W
Time-limited power	1.600W for 1 hour
Peak power	2.100W for 15 seconds
Maximum efficiency	91%
Zero-load power	14W
Zero-load power in ECO mode	1W
Low battery shutdown	9,3V, adjustable
Low battery restart / alarm	10,9V, adjustable
“Battery charged” detection	14V, adjustable
Operating temperature	-40°C to +65°C
Maximum humidity	95%, non-condensing
Material	Steel housing with plastic cover
Colour	Blue, RAL 5012
Battery connection	Screw terminals
Max. battery cable cross-section	50mm²
AC output	SCHUKO (CEE 7/4)
Protection rating	IP21
Weight	8,9kg
Dimensions (H × W × D)	117 × 231 × 395mm
Bluetooth	Via optional VE.Direct Bluetooth Smart dongle
Remote on/off	Yes
Safety	EN 60335-1 / EN-IEC 62109-1
EMC	EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Automotive directive	ECE R10-4
Warranty	5 years

Note: The DC cable cross-section, fuse protection and battery capacity must be suitable for the inverter's input power. The separately available VE.Direct Bluetooth Smart dongle is required for Bluetooth.
