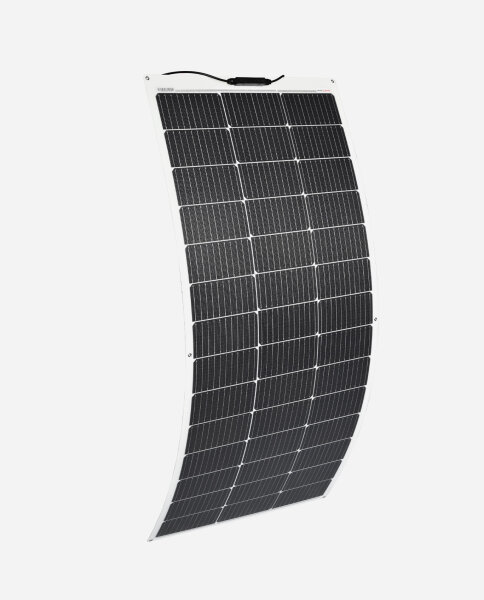

enjoy solar ® ETFE Marine Semi-Flexible Solar Panel 182*182mm 10 Busbars PERC Cells, 150W /12V

enjoy solar ® ETFE Marine Semi-Flexible Solar Panel 182*182mm 10 Busbars PERC Cells, 150W /12V

SKU: 00-1610150NEU
GTIN: 4260558573548
Category: Flexible Solar Panel
Manufacturers: enjoy solar

New ETFE Semi-flexible solar panel with 182mm*182mm Perc cells
Cell efficiency up to 22,7%
Better bendability max. up to 50 degree
High resistance to salt water, rain, hail and wind
Lighter weight and easy installation

83,15 €

incl. 0% VAT , plus

Available immediately

The new enjoy solar® ETFE semi-flexible solar panel with 10 bus bars (conventional flexible solar panels have just 5 bus bars) ensures higher efficiency and longer lifetime. By increasing the cell size to 182mm * 182mm, the area of solar cells on the arrays is increased and the cell efficiency is significantly improved (up to 22.7%). Thanks to advanced solar cell technology, the panel offers better flexibility of up to 50 degrees compared with other semi-flexible solar panel.The extra translucent structured ETFE coating of the solar modules provides very high scratch resistance and weather resistance, so the modules are well protected from external influences such as salt water, hail, rain or wind, ideal for RVs, boats, yachts and various solar lighting systems, off-grid and backup solar power systems.Mounting tips: the module must be fixed to a surface. We recommend Sikaflex®-252i adhesive or 3MTM VHBTM double-sided tape - thickness of 2.3mm.

Special Features:

Increased cell efficiency up to 22.7%.
Structure with 182mm*182mm monocrystalline solar cells
With 10 multi-busbars, less resistance and more stability
Less spacing between solar cells and thinner busbar design
Bendability: max. 50°
embedded patented composite material plate
ETFE coating with high elasticity and durability
Waterproof junction box with injected silicone
High resistance to salt water, rain, hail and wind
Lighter weight and easy installation
1 year manufacturer warranty, 5 year performance warranty

Technical Data

Model	enjoy solar ETFE Semi-flexible Solar Panel 150W/12V
Product number	Flex Line ES150M72
Item number	1610150
Max. power (Pmax)	150W
Max. voltage (Vmp)	24.4V
Max. current (Imp)	6.15A
Open circuit voltage(Voc)	28.5V
Short circuit current (Isc)	6.45A
Operating temperature	-40~80°C
Max. system voltage	600VDC(IEC)
Cell efficiency	22.7%
Power tolerance	0 ~+3%
Cell type	Mono 182mm*182mm
Cells	42 (3*14)
Junction box	XC502
Connected solar cable	90cm, 2.5mm² solar cable with MC4 connector
Protection class	IP67
Bypass Diode	2 pcs. (20SQ045)
Dimension (mm)	1370 * 580 * 3
Weight (kg)	3.6

*Values according to STC conditions (E = 1000W / m², Tc = 25 ° C, AM = 1.5)

How many bypass diode are installed in solar panel?

Solar panel 10W-80W has one bypass diode; solar panel 100W-320W has two bypass diodes. Exception: 1100100 (100W) has only one diode and 1160105 (XL 100W) has two diodes.

What is the function of the bypass diode?

The bypass diodes’ function is to eliminate the hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform.

How does shading affect the performance of solar panel?

When solar panels are exposed to shady conditions, their efficiency drops, and their performance suffers as a result. Environmental obstructions such as trees or nearby buildings, clouds, self-shading between panels in parallel rows, dirt, dust, and various other trash such as bird droppings, all cause shading. These shading effects may be static as a result of the obstruction’s location, or dynamic in certain situations, such as a shadow cast by moving clouds. Therefore, eliminating solar shading problems is the most effective way to avoid them.

How can I check the power of my panel?

Measure the open circuit voltage and short circuit current of your solar panel with multimeter and compare the result with the technical data of the panel. Please also note that the calculated values from technical data are ideal values and depend on various factors such as temperature, angle, compass direction, irradiance, air mass, humidity, solar radiation (impairment e.g., by high fog), resistances in cables, connectors, and charge controllers, etc.

Can different solar panels be connected?

Solar panels with the same (or slightly deviated value +/- 1V) voltage (V) but different power (W) can be connected in parallel without any problem. Solar panels of different voltage and power must not be connected in parallel, because the solar panel with the lowest voltage determines the voltage output of the whole array. When connecting solar panels together in parallel it is important that they ALL have the same nominal voltage value, but it is not necessary that they have the same ampere value. Solar panels with the same (or slightly deviated value +/- 1A) current (A) but different power (W) can be connected in series without any problem. Solar panels of different current and power should not be connected in series, because the solar panel with the lowest current determines the current output of the whole array. In fact, we do not recommend a parallel/series connection of the different solar modules, as a loss of power cannot be avoided in any case.
