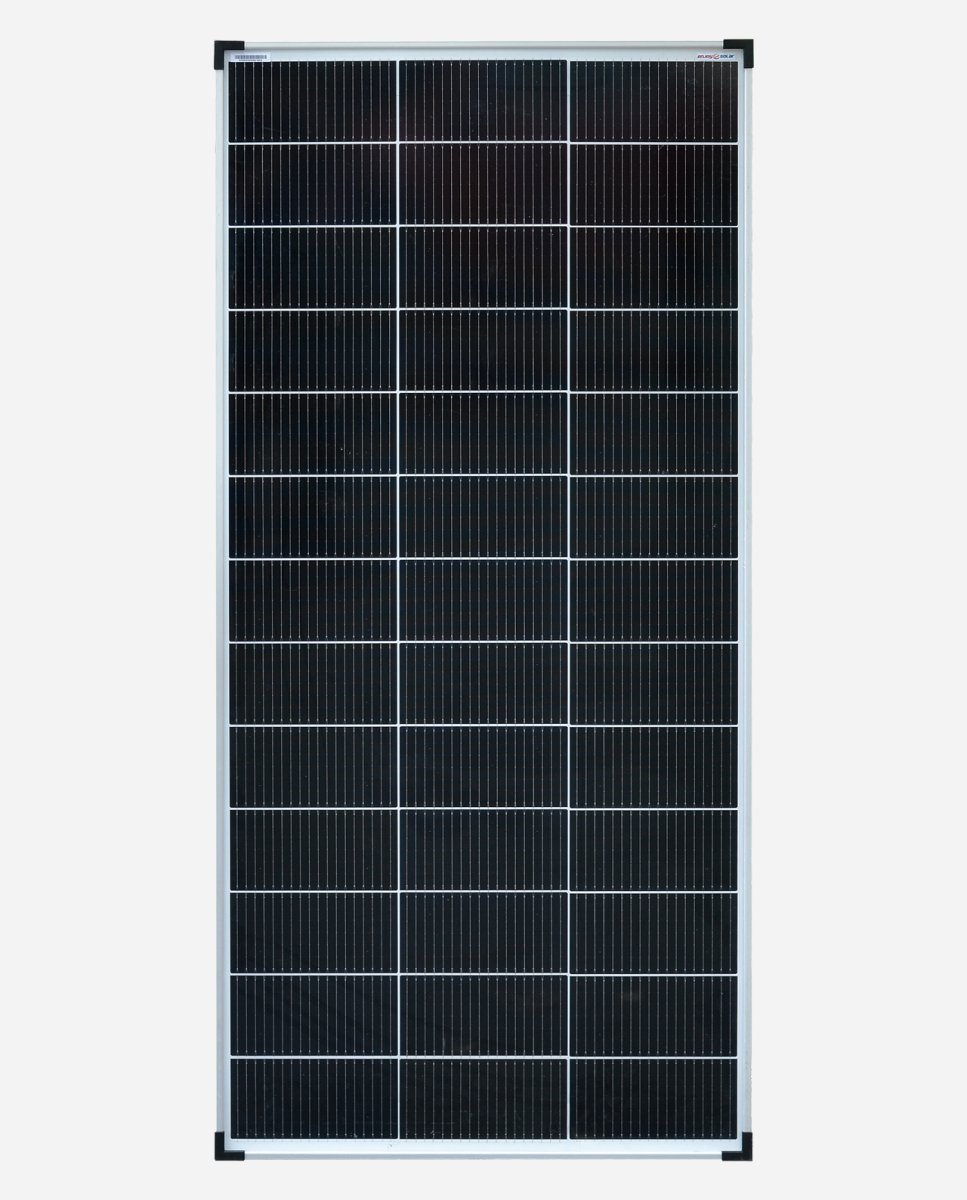

enjoy solar® Monocrystalin Solarpanel TOPCon-Technology, 220W 12V

enjoy solar® Monocrystalin Solarpanel TOPCon-Technology, 220W 12V

SKU: 1100220
GTIN: 4260558576044
Category: TOPCON Series
Manufacturers: enjoy solar

Up to 25.5% cell efficiency – significantly higher than conventional solar modules
Excellent low-light performance – high efficiency even under cloudy conditions
Optimized temperature coefficient – higher power output at elevated temperatures
Durable & resilient – engineered for the harshest environmental conditions
Advanced cell technology for maximum energy yield

82.31 € 0% MwSt. - § 12 Abs. 3 UStG

97,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Available immediately

TOPCon Technology – The Next Generation of Modern Solar Modules

Our TOPCon solar modules (Tunnel Oxide Passivated Contact) represent state-of-the-art cell technology, high energy efficiency, and long-term reliable performance. This innovative advancement of the proven PERC technology enables higher energy yields and improved performance under a wide range of weather conditions.

Thanks to the optimized cell structure, TOPCon modules deliver higher efficiency and lower power degradation throughout their entire service life. This allows more solar energy to be generated on the same module area – ideal for applications with limited installation space or increased energy demands.

TOPCon modules perform particularly well at high temperatures and under diffuse light conditions, such as on cloudy days or during morning and evening hours, providing more stable energy yields and enhanced overall Performance.

Special features

TOPCon cell technology – Advanced high-performance cells with improved efficiency and optimized energy yield
Up to 25.5% efficiency – significantly higher than conventional solar modules
Excellent low-light performance – high efficiency even under cloudy conditions
Optimized temperature coefficient – higher power output at elevated temperatures
Durable & resilient – engineered for the harshest environmental conditions
ESG solar glass – tempered and coated for superior weather resistance

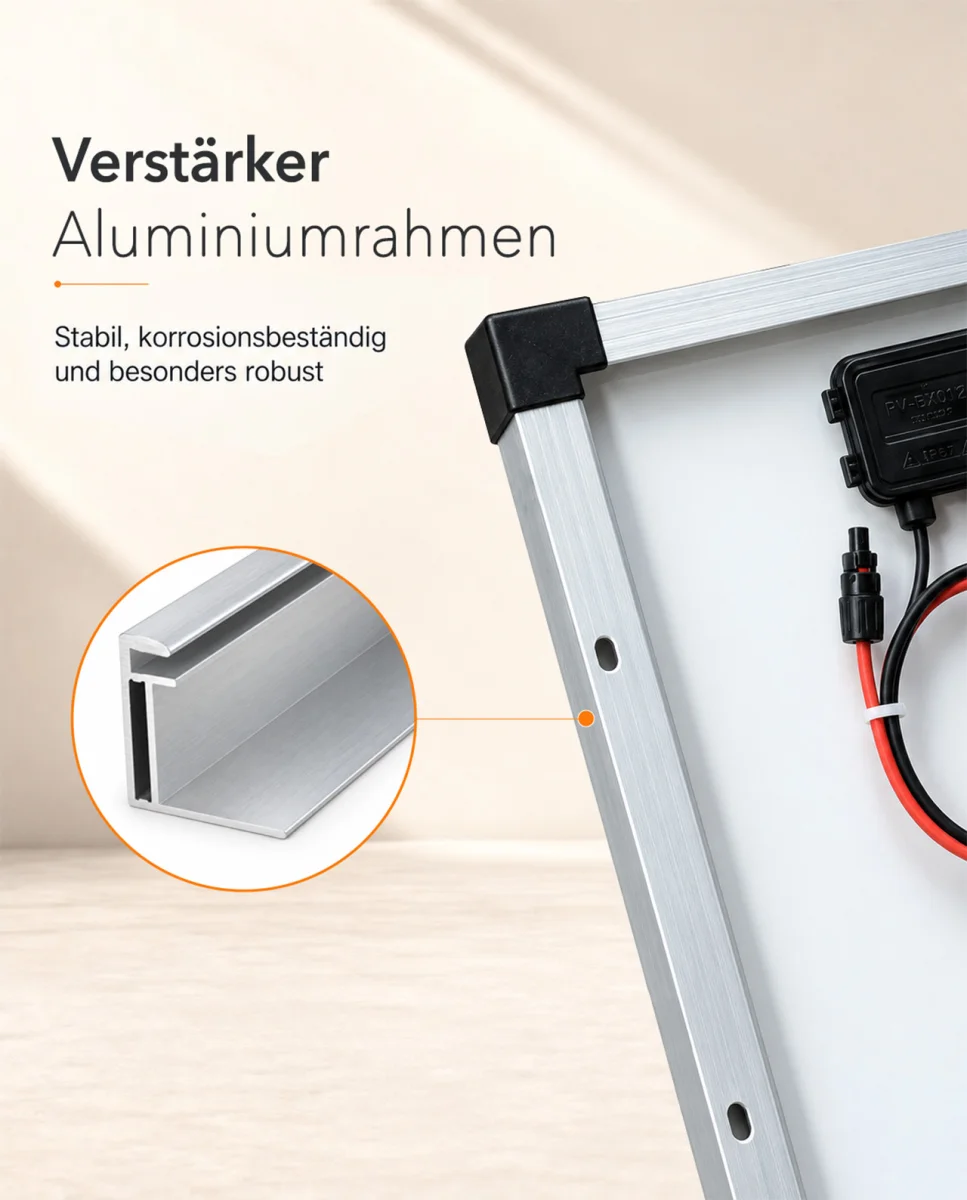

Reinforced aluminum Frame – stable, corrosion-resistant, and exceptionally robust
2 integrated bypass diodes – reduces power loss caused by partial shading
IP67 waterproof rating – designed to withstand wind loads up to 2,400 Pa and snow loads up to 5,400 Pa
Plug & Play cabling – 90 cm 4.0 mm² solar cable with MC4 connectors
TÜV-certified – compliant with IEC 61215 & IEC 61730 standards for quality and safety
Performance warranty – +3% power tolerance, 90% output after 10 years, and 80% output after 25 years

Technical data

Manufacturer model	Eco Line ES200M
EAN Code	4260558576044
Article number	1120220
Cells	39 PCs. (3*13)
Max. Power (Pm)	220 W *
Max. Voltage (Vmp)	23.60 V
Max. Current (Imp)	9.32 A
Open circuit voltage (Voc)	27.30 V
Short circuit current (Isc)	10.13A
Operating temperature	-40 ° C to +85 ° C
Maximum System Voltage	1000 V DC
Power Tolerance	0~ + 3%
Net Weight	10.2 kg
Dimensions	1480 * 670 * 30 mm

Values according to STC conditions (E = 1000 W / m², Tc = 25 ° C, AM = 1.5)

How many bypass diode are installed in solar panel?

Solar panel 10W-80W has one bypass diode; solar panel 100W-320W has two bypass diodes. Exception: 1100100 (100W) has only one diode and 1160105 (XL 100W) has two diodes.

What is the function of the bypass diode?

The bypass diodes’ function is to eliminate the hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform.

How does shading affect the performance of solar panel?

When solar panels are exposed to shady conditions, their efficiency drops, and their performance suffers as a result. Environmental obstructions such as trees or nearby buildings, clouds, self-shading between panels in parallel rows, dirt, dust, and various other trash such as bird droppings, all cause shading. These shading effects may be static as a result of the obstruction’s location, or dynamic in certain situations, such as a shadow cast by moving clouds. Therefore, eliminating solar shading problems is the most effective way to avoid them.

How can I check the power of my panel?

Measure the open circuit voltage and short circuit current of your solar panel with multimeter and compare the result with the technical data of the panel. Please also note that the calculated values from technical data are ideal values and depend on various factors such as temperature, angle, compass direction, irradiance, air mass, humidity, solar radiation (impairment e.g., by high fog), resistances in cables, connectors, and charge controllers, etc.

Can different solar panels be connected?

Solar panels with the same (or slightly deviated value +/- 1V) voltage (V) but different power (W) can be connected in parallel without any problem. Solar panels of different voltage and power must not be connected in parallel, because the solar panel with the lowest voltage determines the voltage output of the whole array. When connecting solar panels together in parallel it is important that they ALL have the same nominal voltage value, but it is not necessary that they have the same ampere value. Solar panels with the same (or slightly deviated value +/- 1A) current (A) but different power (W) can be connected in series without any problem. Solar panels of different current and power should not be connected in series, because the solar panel with the lowest current determines the current output of the whole array. In fact, we do not recommend a parallel/series connection of the different solar modules, as a loss of power cannot be avoided in any case.
