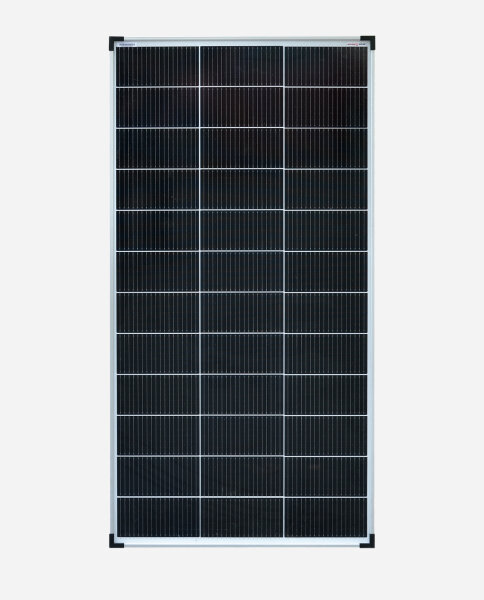

enjoy solar® Monocrystalline Solar Panel with TOPCon Technology, 200W 12V

enjoy solar® Monocrystalline Solar Panel with TOPCon Technology, 200W 12V

SKU: 00-1100200
GTIN: 4260558579151
Manufacturers: enjoy solar

Max. voltage (Vmp): 21.8V
Max. current (Imp): 9.18 A
Open-circuit voltage (Voc): 25.2 V
Short-circuit current (Isc): 9.98 A
Module dimensions: 1340 x 670 x 30 mm
Module weight: 9.3 kg
Suitable for 12V solar systems with a compatible charge controller

75,59 €

incl. 0% VAT , plus

Low stock level

Description
FAQ
Reviews
PDF (2)

MONOCRYSTALLINE TOPCON SOLAR PANEL

200W power in a compact design.

The enjoy solar® 200W 12V solar panel combines modern TOPCon cell technology with high energy efficiency and stable long-term performance. It combines high-performance solar cells with a robust construction, ensuring reliable power generation across a wide range of applications.

Up to 25.5% cell efficiency for high energy yields
Excellent performance in diffuse light and cloudy conditions
Reinforced aluminium frame for demanding outdoor conditions

TOPCON TECHNOLOGY

High energy yield. Efficient in low light. Stable in heat.

The advanced cell technology is designed for efficient energy generation under varying light and temperature conditions.

High cell efficiency

High-performance monocrystalline TOPCon cells with up to 25.5% cell efficiency enable a high energy yield from a compact panel area.

Strong low-light performance

Even in diffuse light, cloudy conditions and during the morning and evening hours, the panel enables efficient energy generation.

Optimised temperature performance

Lower temperature-related power losses support stable performance and reliable energy yields, even at higher panel temperatures.

enjoy solar TOPCon solar panels on a garden shed

STABLE & WEATHER-RESISTANT

Designed for long-term outdoor use.

The robust construction provides reliable protection against mechanical loads and weather conditions while ensuring high stability—even under demanding operating conditions.

Wind loads up to 2,400Pa and snow loads up to 5,400Pa
Toughened safety solar glass
Corrosion-resistant aluminium frame
Operating temperature from -40°C to +85°C

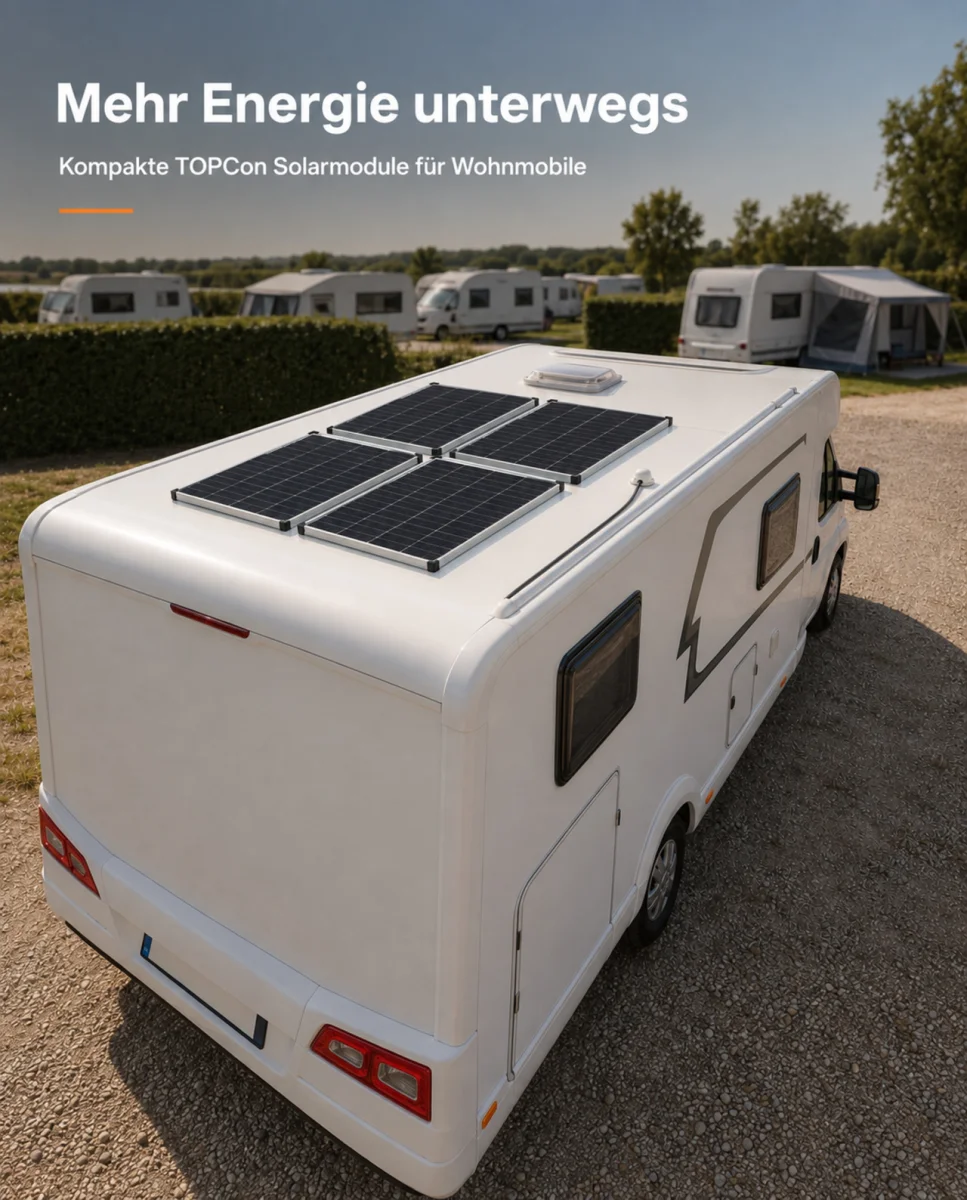

enjoy solar TOPCon solar panels on a motorhome

CONNECTION & APPLICATION

Versatile for mobile and off-grid applications.

Designed for flexible use in mobile and off-grid solar systems. The panel is easy to integrate and suitable for a wide range of applications.

90cm solar cable with a 4.0mm² conductor cross-section
Ready-to-connect MC4 connectors for easy connection
2 bypass diodes reduce power losses and the risk of hot spots under partial shading
Suitable for motorhomes, campervans, boats and stand-alone off-grid systems

TECHNICAL DATA

TOPCon Series 200W 12V

The most important technical data at a glance. Further details are available in the complete data table.

21.8 VMax. voltage (Vmp)

9.18 AMax. current (Imp)

25.2 VOpen-circuit voltage (Voc)

9.98 AShort-circuit current (Isc)

1340 × 670 × 30mmDimensions

9.3 kgWeight

Complete technical data 14 specifications


Model	Eco Line ES200M36
EAN code	4260558574033
Item number	1100200
Cell type	Monocrystalline TOPCon solar cells
Solar cells	36 (3 x 12)
Max. power (Pm)	200 W*
Max. voltage (Vmp)	21.8 V
Max. current (Imp)	9.18 A
Open-circuit voltage (Voc)	25.2 V
Short-circuit current (Isc)	9.98 A
Operating temperature	-40 °C to +85 °C
Max. system voltage	1000 V DC
Power tolerance	0~ +3 %
IP rating	IP65
Dimensions	1340 × 670 × 30 mm
Net weight	9.3 kg

Note: The specified electrical values apply under STC conditions (irradiance 1000W/m², cell temperature 25°C, air mass AM 1.5). Actual energy yield may vary depending on environmental and installation conditions, particularly temperature, orientation, tilt angle, shading and system losses.

WIRING CONFIGURATION

Series or parallel?

(Simplified example)

Series connection

Parallel connection

Before making any connections, verify that the voltage and current remain within the permissible input ratings of the connected equipment.

SYSTEM COMPATIBILITY

Is the module compatible with your device?

Typical system configuration: The solar module is connected to the battery through a suitably rated charge controller. A compatible inverter is additionally required to supply 230 V AC loads. All components must be correctly matched in terms of voltage, current and power rating.

INSTALLATION

Optimally Fine-tune

Tilt angle Location-dependent alignment

Shading Avoid wherever possible, including partial shading

Mounting system Select a solution suitable for the mounting surface

Position the module for maximum solar exposure and minimise shading wherever possible. The optimum tilt angle and orientation depend on the installation site. Use a mounting system suitable for the supporting surface and rated for the applicable wind and snow loads. The illustrated 30° angle is provided solely as an example.

Important: Before purchasing or connecting the module, confirm that its voltage, current and power ratings are compatible with the PV input of the intended equipment. Observe the correct polarity, cable cross-section, overcurrent protection and all connection requirements specified by the respective equipment manufacturers. Do not disconnect connectors under load, and use only compatible, approved connectors.

How many bypass diode are installed in solar panel?

Solar panel 10W-80W has one bypass diode; solar panel 100W-320W has two bypass diodes. Exception: 1100100 (100W) has only one diode and 1160105 (XL 100W) has two diodes.

What is the function of the bypass diode?

The bypass diodes’ function is to eliminate the hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform.

How does shading affect the performance of solar panel?

When solar panels are exposed to shady conditions, their efficiency drops, and their performance suffers as a result. Environmental obstructions such as trees or nearby buildings, clouds, self-shading between panels in parallel rows, dirt, dust, and various other trash such as bird droppings, all cause shading. These shading effects may be static as a result of the obstruction’s location, or dynamic in certain situations, such as a shadow cast by moving clouds. Therefore, eliminating solar shading problems is the most effective way to avoid them.

How can I check the power of my panel?

Measure the open circuit voltage and short circuit current of your solar panel with multimeter and compare the result with the technical data of the panel. Please also note that the calculated values from technical data are ideal values and depend on various factors such as temperature, angle, compass direction, irradiance, air mass, humidity, solar radiation (impairment e.g., by high fog), resistances in cables, connectors, and charge controllers, etc.

Can different solar panels be connected?

Solar panels with the same (or slightly deviated value +/- 1V) voltage (V) but different power (W) can be connected in parallel without any problem. Solar panels of different voltage and power must not be connected in parallel, because the solar panel with the lowest voltage determines the voltage output of the whole array. When connecting solar panels together in parallel it is important that they ALL have the same nominal voltage value, but it is not necessary that they have the same ampere value. Solar panels with the same (or slightly deviated value +/- 1A) current (A) but different power (W) can be connected in series without any problem. Solar panels of different current and power should not be connected in series, because the solar panel with the lowest current determines the current output of the whole array. In fact, we do not recommend a parallel/series connection of the different solar modules, as a loss of power cannot be avoided in any case.
