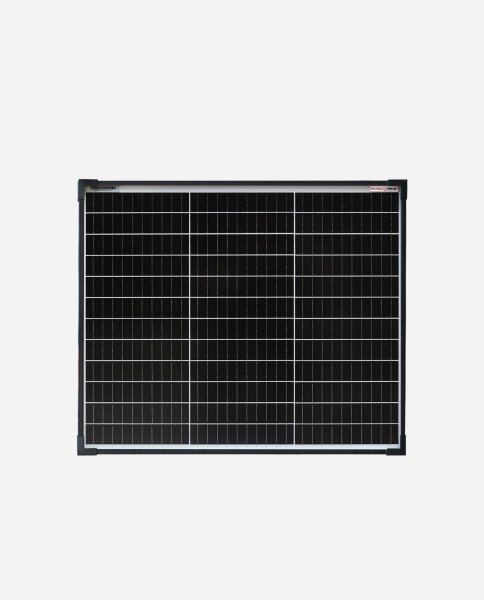

enjoy solar®PERC Monocrystalline Solar panel, 182mm solar cells, 10Busbars, 50W 12V

enjoy solar®PERC Monocrystalline Solar panel, 182mm solar cells, 10Busbars, 50W 12V

SKU: 00-1140050
GTIN: 4260558577584
Manufacturers: enjoy solar

182mm Mono-Perc Solarcells, 10 Busbars
Increased efficiency above 23.1%
Higher current stability and low energy loss with 10-busbars
Space saving and more choice of module sizes
Ideal for 12V off-grid systems

30,21 €

incl. 0% VAT , plus

Available immediately

Description
Reviews

All efforts are made to increase the power of PV-system, EXLUSIVELY SOLD BY SOLARV!

The new generation of PV Module made of 182mm mono solar cells, which will be the trend of the foreseeable future, will effectively empower your solar system. With the improvement of the manufacturing technology, the internal resistance of 182mm PV Module will be reduced, which results in less heat loss during power generation. Thus, solar energy will be converted into electricity more efficiently. The advantage of 182mm PV Module will be even more obvious with higher irradiance of the sun and higher ambient temperature. Therefore, the new 182mm PV Module is a great choice for PV System.

Special features

Construction with 182mm monocrystalline PERC cells
With 10 multi-busbars, less resistance, and more stability
Increased cell efficiency above 23.1%
Less gaps between the solar cells and thinner busbar design
More solid energy generation with the added copper and excellent performance in case of the low light
Reduced installation area and costs
1 pcs integrated bypass diode
Surface made of hardened ESG solar glass with weatherproof coating
Unique, extra robust frame made of anodized aluminum
90 cm long solar cable; 2.5 mm² connected with MC-4 connectors
TÜV certified according to standards IEC61215, IEC61730
Plus tolerance guarantee (+ 3%), performance guarantee up to 10 years with 90% and up to 25 years with 80%

Electrical characteristics

Product code	Eco Line ES50M
Item number	1140050
EAN Code	4260558572442
Cells	Monocrystalline Perc
Max. power(Pmax)	50W
Max. voltage(Vmp)	20.2V
Max. current (Imp)	2.48A
Open circuit voltage (Voc)	24.0V
Short circuit current (Isc)	2.68A
Temperature coefficient of Voc	-0.36%/K
Temperature coefficient of Isc	0.05%/K
Temperature coefficient of power	-0.44%/K
Normal operating cell temperature	44+/-2°C
Operating temperature	-40 ~ +85°C
Max. System voltage	1000VDC
Power tolerance	0 ~ +3%
Junction Box	Waterproof IP65
Bypass Diodes	1 pc
Module dimension	580 * 490 * 30 mm
Module weight	3.7kg
