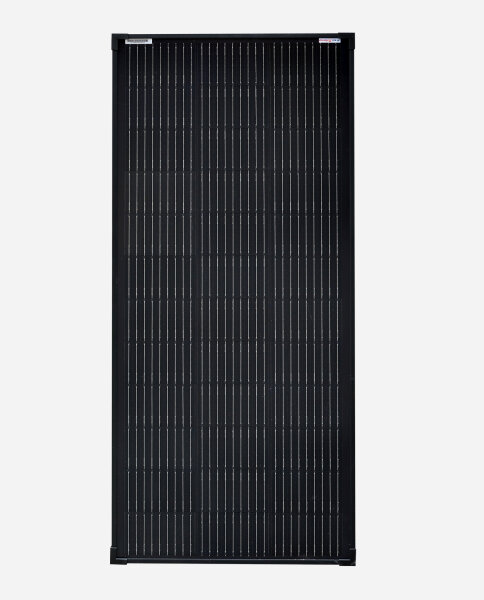

enjoysolar® Monocrystalline Full Black Solar Panel 100W 12V

enjoysolar® Monocrystalline Full Black Solar Panel 100W 12V

SKU: 110B100
GTIN: 4260558570158
Category: Black Series Monocrystalline 12V
Manufacturers: enjoy solar

Full Black Design
Dimensions: 1020 * 540 * 30mm
Weight: 5,9KG (Net), 6,8KG (Gross)
Voc: 24,4V, Isc: 5,39A, Vmp: 20,2V, Imp: 4,96A
Perfect for 12V PV-System

50.38 € 0% MwSt. - § 12 Abs. 3 UStG

59,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Available immediately

Special features

Built with classic 158,75mm monocrystalline cells with 9-Busbars
90cm long 4mm² solar cable with MC4 connector
Two integrated bypass diode – minimized power loss during shading
TÜV certified
Surface made of tempered toughened solar glass with weatherproof Coating
Unique extra robust frame in anodized aluminum
Performance guarantee up to 10 years with 90% and up to 25 years with 80%

Electrical characteristics

Model	Black Line ES100-12M6
SKU	110B100
EAN Code	4260558570158
Cells	36 (3 * 12) Monokrystallin Perc
Max.power (Pmax)	100W
Max.voltage (Vmp)	20,20V
Max.current (Imp)	4,96A
Open circuit voltage (Voc)	24,40V
Short circuit current (Isc)	5,39A
Temperature coefficient of Voc	-0.36%/K
Temperature coefficient of Isc	0.05%/K
Temperature coefficient of power	-0.44%/K
Normal operating cell temperature	44+/-2°C
Operating temperature	-40 ~ +85°C
Max. System voltage	1000VDC
Power tolerance	0 ~ +3%
Junction Box	IP65
Bypass Diodes	1 pc.
Module dimension	1020 * 540 * 30 mm
Module weight	5,90kg

* Measured at standard test conditions: irradiance 1000 W/m², air mass 1.5 spectum, temperature 25°C, Electrical parameters vary by -5% to +5%

How many bypass diode are installed in solar panel?

Solar panel 10W-80W has one bypass diode; solar panel 100W-320W has two bypass diodes. Exception: 1100100 (100W) has only one diode and 1160105 (XL 100W) has two diodes.

What is the function of the bypass diode?

The bypass diodes’ function is to eliminate the hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform.

How does shading affect the performance of solar panel?

When solar panels are exposed to shady conditions, their efficiency drops, and their performance suffers as a result. Environmental obstructions such as trees or nearby buildings, clouds, self-shading between panels in parallel rows, dirt, dust, and various other trash such as bird droppings, all cause shading. These shading effects may be static as a result of the obstruction’s location, or dynamic in certain situations, such as a shadow cast by moving clouds. Therefore, eliminating solar shading problems is the most effective way to avoid them.

How can I check the power of my panel?

Measure the open circuit voltage and short circuit current of your solar panel with multimeter and compare the result with the technical data of the panel. Please also note that the calculated values from technical data are ideal values and depend on various factors such as temperature, angle, compass direction, irradiance, air mass, humidity, solar radiation (impairment e.g., by high fog), resistances in cables, connectors, and charge controllers, etc.

Can different solar panels be connected?

Solar panels with the same (or slightly deviated value +/- 1V) voltage (V) but different power (W) can be connected in parallel without any problem. Solar panels of different voltage and power must not be connected in parallel, because the solar panel with the lowest voltage determines the voltage output of the whole array. When connecting solar panels together in parallel it is important that they ALL have the same nominal voltage value, but it is not necessary that they have the same ampere value. Solar panels with the same (or slightly deviated value +/- 1A) current (A) but different power (W) can be connected in series without any problem. Solar panels of different current and power should not be connected in series, because the solar panel with the lowest current determines the current output of the whole array. In fact, we do not recommend a parallel/series connection of the different solar modules, as a loss of power cannot be avoided in any case.
