Victron SmartSolar MPPT 100/20 – Solar Chargers 20A, 12/24/48VDC with integrated Bluetooth

Victron SmartSolar MPPT 100/20 – Solar Chargers 20A, 12/24/48VDC with integrated Bluetooth

SKU: 2410020
GTIN: 8719076043027
HAN: SCC110020160R
Category: MPPT
Manufacturers: Victron

Up to 98% efficiency for effective battery charging
Bluetooth Smart for configuration and monitoring via the VictronConnect app
Intelligent battery management with BatteryLife for extended battery lifespan
SafetyShield+ with comprehensive protection features and maintenance-free, passive cooling
Ideal for motorhomes, boats, and off-grid or standalone systems
Support for various battery technologies

69.71 € 0% MwSt. - § 12 Abs. 3 UStG

82,95 €

incl. 19% VAT , plus

umsatzsteuerfreie Lieferung möglich

Mit dem beschlossenen Jahressteuergesetz (JStG) 2022 wurde den Ausbau von Photovoltaikanlagen für Privatkunden vergünstigt, konkret ist Nullsteuersatz mit Vorsteuerabzug für die Lieferung und Installation von Photovoltaikanlagen auf oder in der Nähe von Wohngebäuden bis 30KW- §12 Abs. 3 Nr. 1 UstG (neu). Die Befreiung von der Umsatzsteuer ab 01.01.2023 gilt auch für Teile unseres Sortiments, wie z. B. Photovoltaikmodule, Wechselrichter oder auch Batteriespeicher.

Zum mehrwertsteuerbefreiten Produkt

Currently out of stock

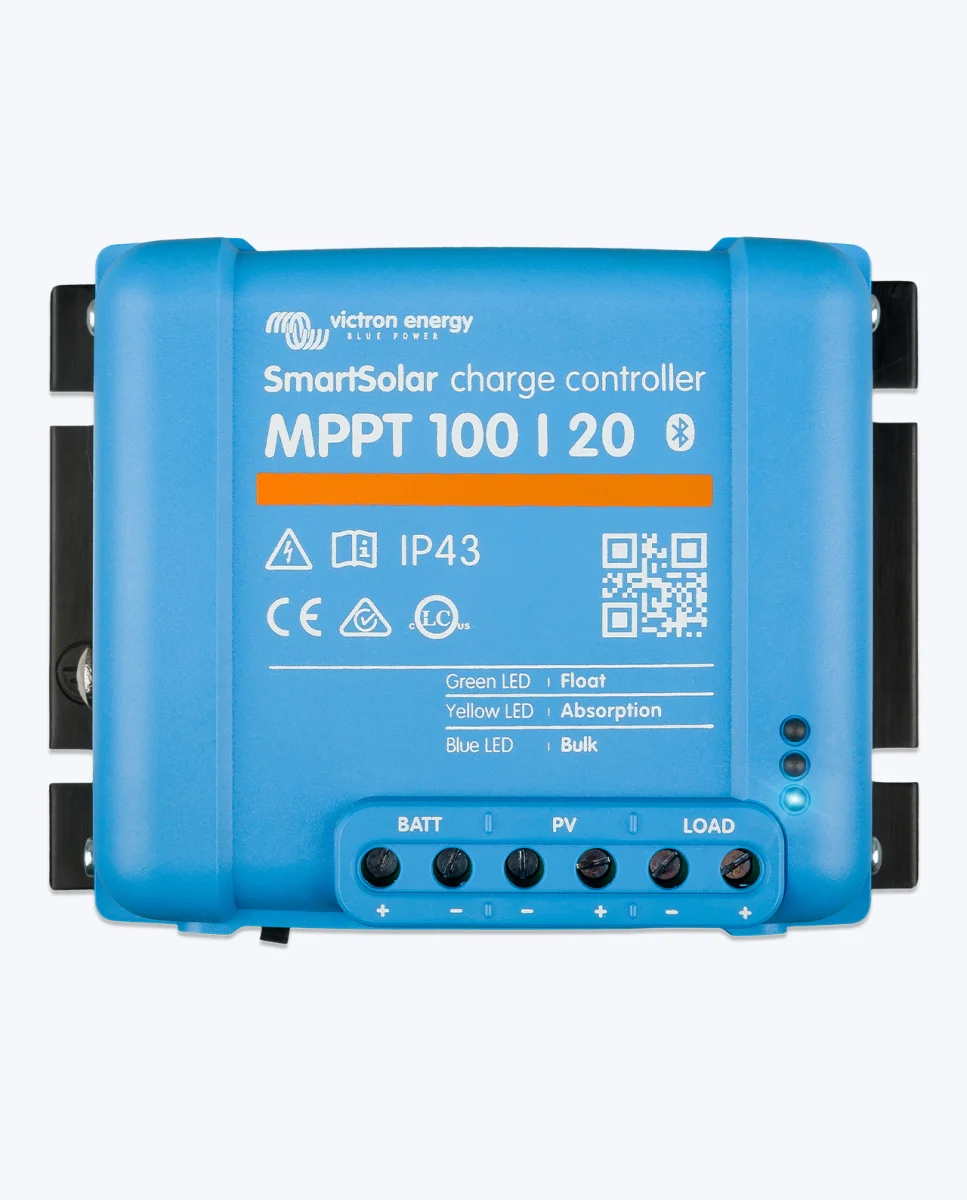

Victron SmartSolar MPPT 100/20 solar charge controller

INTELLIGENT MPPT SOLAR CHARGE CONTROLLER

SmartSolar MPPT 100/20. More power, full control.

The Victron Energy SmartSolar MPPT 100/20 harvests as much energy as possible from the solar modules, even in changing light and partial shade. With 20A charging current and up to 100V PV open-circuit voltage, it is suitable for higher-power systems.

Ultra-fast MPPT with up to 98% peak efficiency
Bluetooth configuration and real-time monitoring via VictronConnect
Adaptive charging profiles for lithium, AGM, gel and lead-acid batteries

20ARated charging current

100VMax. PV open-circuit voltage

12 / 24 / 48VBattery systems

98%Peak efficiency

SMARTSOLAR MPPT

More solar yield. Better battery protection.

SmartSolar combines fast tracking with intelligent charging tailored to the battery type—in a compact, silent design built for demanding conditions.

Ultra-fast MPPT

The controller finds the modules’ optimum operating point particularly quickly and uses the available solar power efficiently, even with clouds or partial shade.

Adaptive battery charging

Bulk, absorption and float charging stages are managed automatically. Suitable presets make it easy to match the controller to different battery types.

BatteryLife protection

The intelligent load output prevents excessive discharge. BatteryLife automatically adjusts the disconnect threshold to help extend battery life.

VictronConnect app for monitoring the SmartSolar MPPT 100/20

BLUETOOTH SMART & VICTRONCONNECT

System data at a glance

Integrated Bluetooth Smart connects the charge controller directly to VictronConnect. Settings, real-time values and performance history are available without additional accessories.

Monitor PV power, battery voltage and charging status in real time
Configure charging profiles, load output and custom alarms
Update firmware conveniently through the app
Optional VRM Portal integration via VE.Direct and a GX device

Victron SmartSolar MPPT 100/20 connection view

SAFETYSHIELD+ & SYSTEM INTEGRATION

Robust in operation. Flexible in the system.

Natural cooling and integrated protection features enable quiet, low-maintenance operation. Multiple compatible SmartSolar controllers can be synchronized to run charging stages together.

For motorhomes, caravans, boats and off-grid systems
Temperature-controlled charging and overtemperature protection
Protection against PV short circuit, reverse polarity and reverse current
Wireless charging synchronization of multiple controllers via Bluetooth

TECHNICAL DATA

SmartSolar MPPT 100/20

The most important values at a glance. Open the complete data table whenever you need more detail.

20ARated charging current

100VMax. PV open-circuit voltage

12 / 24 / 48VBattery voltage

290 / 580 / 1.160WPV power at 12 / 24 / 48V

98%Peak efficiency

IP43 / IP22Electronics / terminal area

Complete technical data 29 specifications

SmartSolar charge controller	SmartSolar MPPT 100/20
Model number	SCC110020160R
Battery voltage (automatic selection)	12 / 24 / 48V
Rated charging current	20A
Nominal PV power (12V)	290W
Nominal PV power (24V)	580W
Nominal PV power (48V)	1.160W
Max. PV array short-circuit current	20A
Automatic load disconnection	Yes
Maximum PV open-circuit voltage	100V
Peak efficiency	98%
Self-consumption – charging enabled	12V: 26mA 24V: 20mA 48V: 19mA
Self-consumption – charging disabled	12V: 10mA 24V: 8mA 48V: 7mA
Absorption charge voltage	14.4V / 28.8V / 57.6V, adjustable
Float charge voltage	13.8V / 27.6V / 55.2V, adjustable
Charging algorithm	Multi-stage, adaptive
Temperature compensation	-16mV/°C or -32mV/°C
Continuous load current	20A
Low-voltage load disconnection	11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V, or BatteryLife
Load reconnection	13.1V / 26.2V / 52.4V or 14V / 28V / 56V, or BatteryLife
Protection	Output short circuit / overtemperature
Operating temperature	-30°C bis +60°C
Humidity	95%, non-condensing
Data communication port	VE.Direct
Power terminals	6mm² / AWG10
Protection rating	IP43 electronics / IP22 terminal area
Weight	0,65kg
Dimensions (H × W × D)	100 × 131 × 60mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
Stored trend data	Battery voltage, battery current, battery temperature, load output current, PV voltage and PV current
Trend data storage period	46 days

Note: The charge controller must be selected and sized to match the maximum PV open-circuit voltage, the array short-circuit current and the battery voltage. If more PV power is connected, the controller limits the input power.

Model comparison

SmartSolar MPPT Series Comparison

Technical differences and suitable applications for the three SmartSolar ranges at a glance.

Feature	75/15 & 100/20	100/30 & 100/50	150/35
Application	Small to medium-sized solar systems	Medium to larger solar systems	Larger solar systems with long module strings
Max. PV open-circuit voltage	75 V / 100 V	100 V	150 V
Rated charging current	15 A / 20 A	30 A / 50 A	35 A
Battery voltage	12/24 V or 12/24/48 V, depending on model	12/24 V	12/24/48 V automatic, 36 V manual
Max. PV power	up to 1,160 W	up to 1,400 W	higher than 100/30, designed for larger PV systems
Load output	✔ Yes	✘ No	✘ No
BatteryLife-Algorithmus	✔ Yes	✘ No	✘ No
Bluetooth Smart	✔	✔	✔
VictronConnect App	✔	✔	✔
VE.Direct	✔	✔	✔
VE.Smart Networking	✔	✔	✔
Efficiency	Up to 98%	Up to 98%	Up to 98%
Warranty	5 years	5 years	5 years
